Lippert belt conveyor GF 780-650-500
Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request.

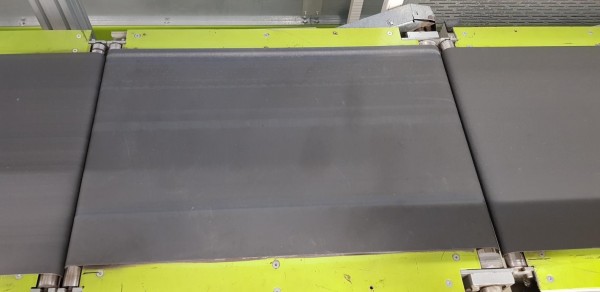

The pictures of the conveyor system shown here were taken in a logistics center while still installed.
Conveying length (NL): 780 mm
Framework width (NB): 650 mm
belt width (GuB): 500 mm
height (BH): 105 mm
support feet: optionally available
Conveying speed (v m/s): 1,1m/s
Drive: SEW gear motor R17 DT71D4/MM03/BW1
Electrical data: 50Hz V380-500, kW 0.07 / 0.37 S1
Drive drum (AT): Ø = 64 mm
Deflection roller (UR): Ø = 34 mm
Belt: Type SNB 5 E
Year of construction: 2001
Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
|Conveying length in mm:||785|
|Nominal / outside width in mm:||650|
|Belt width in mm:||500|
|Engine type:||SEW Eurodrive|
|Conveyor speed m / s:||0,5|
|scope of delivery:||without supports and side guides|
