Knapp transfer roller conveyor Toothed belt slider 90° 900-485-425

€2,115.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Knapp transfer roller conveyor Toothed belt slider 90° 900-485-425 RA1893 Make: Knapp... more
Product information "Knapp transfer roller conveyor Toothed belt slider 90° 900-485-425"

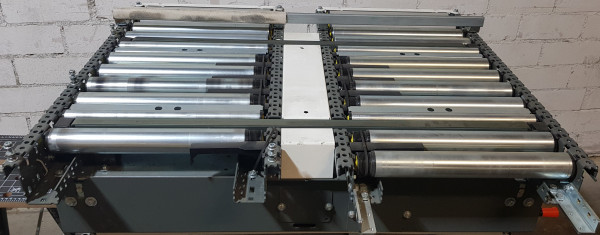

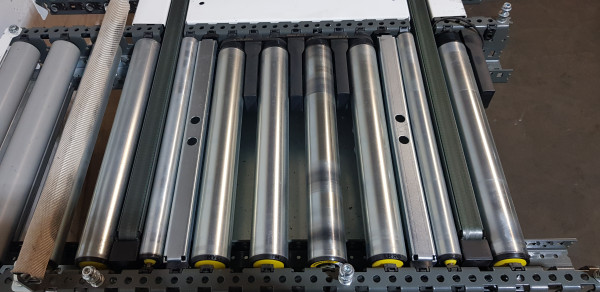

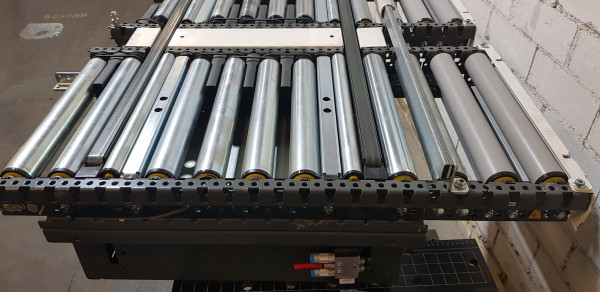

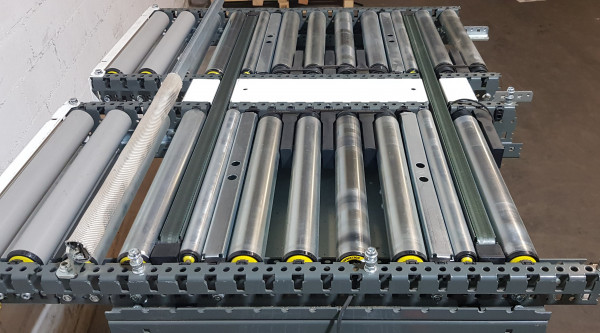

Knapp transfer roller conveyor Toothed belt slider 90° 900-485-425

RA1893

Make: Knapp
Running direction: both directions
Roller width (RB): 425 mm
Nominal/outer width (NB): 485 mm
Length: 900 mm
Roller diameter: 50 mm
Roller distance: 75 mm

Motor overslide belts: SEW-Motor 3x 300-500V
Motor Roller conveyors: Interroll EC300 24V

Height frame: 275 mm
inkluding Pneumatic overslide belts and end stop
Conveyor speed: freely adjustable up to 1,25m/s with Interroll EC300 Motor


Optionally available:
Supports 70.00 Euro p. piece plus VAT.
Side guide one-sided 25,00 Euro p. p. m. plus VAT.
Side guides on both sides 50,00 Euro p. lfm plus VAT

condition: very good (used)
nominal voltage: 24V, 380-500V
Conveying length in mm: 900
Nominal / outside width in mm: 485
Roll width in mm: 425
Roll division in mm: 75
Driven: YES
Engine type: SEW Eurodrive , Interroll EC 300
Conveyor speed m / s: bis 1,25m/s
scope of delivery: inklusive Pneumatische Ventile und Zylinder, including supports
