Transnorm roller conveyor 2229-660-600 with Brake

Preview: Transnorm roller conveyor 2229-660-600 with Brake

Transnorm roller conveyor 2229-660-600 with Brake

€833.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2425

Transnorm roller conveyor 2229-660-600 RA2425 Make: Transnorm Roller width (RB): 600 mm... more

Close menu

Product information "Transnorm roller conveyor 2229-660-600 with Brake"

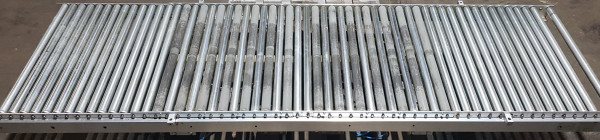

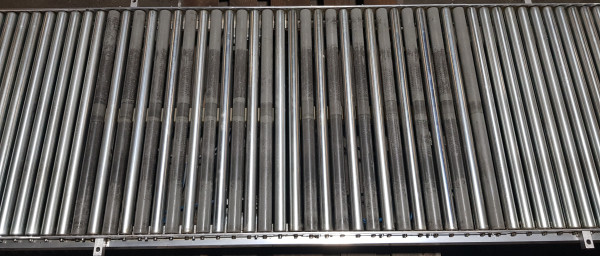

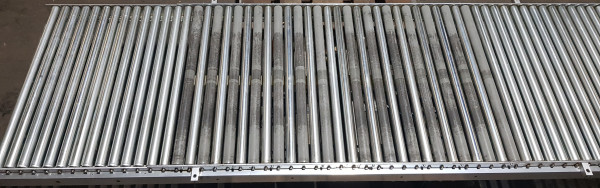

Transnorm roller conveyor 2229-660-600

RA2425

Make: Transnorm
Roller width (RB): 600 mm
Nominal/outer width (NB): 660 mm
Length: 2229 mm
Roller diameter: 30 mm
Roller distance: 76 mm

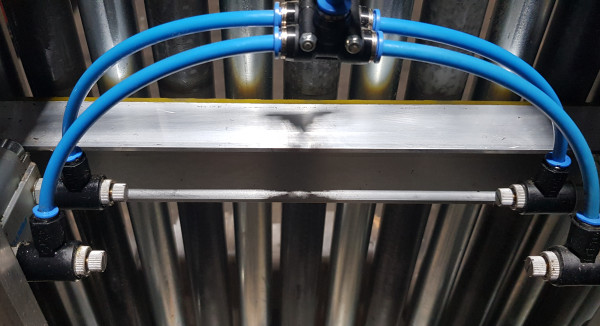

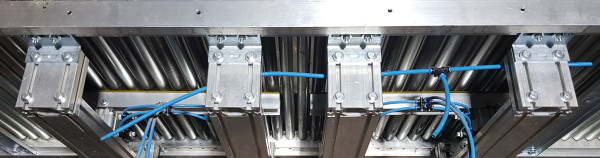

Motor Roller conveyors: no motor but with 2x pneumatic brake
Brake area length: 500 mm
Height frame: 90 mm
Height with brakes: 200 mm

Scope of delivery: without supports

Optionally available:
Supports
Side guide one and both sides

Condition: functional and visually good condition

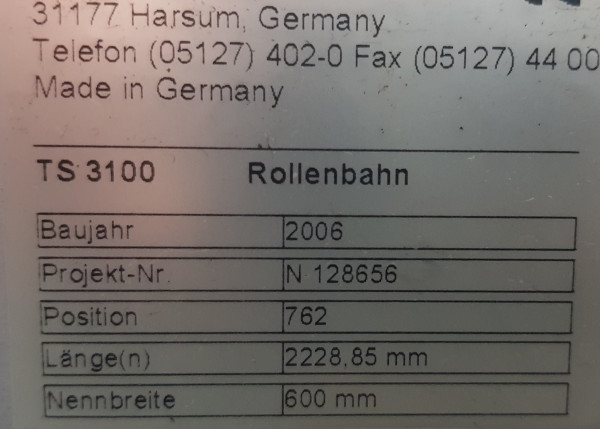

Construction year:	2006
condition:	gut
Conveying length in mm:	2229
Nominal / outside width in mm:	660
Roll width in mm:	600
Roll division in mm:	76
Driven:	NO
scope of delivery:	mit Bremsen, without supports and side guides
