Lippert belt conveyor belt conveyor GF 22250-650-500
Prices plus VAT plus shipping costs
Delivery time approx. 5-10 days.
Pick up by arrangement.
- Order number: RA1361
Lippert belt conveyor GF 22000-650-500
The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW brand motor with MOVIMOT inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request.

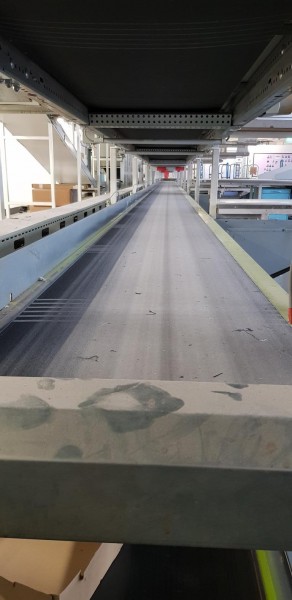

The pictures of the conveyor system shown were taken in a logistics center while still installed.
Length (NL): 22.000 mm
Frame width (NB): 650 mm
belt width (GuB): 500 mm
height (BH): 105 mm
Support feet: optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter

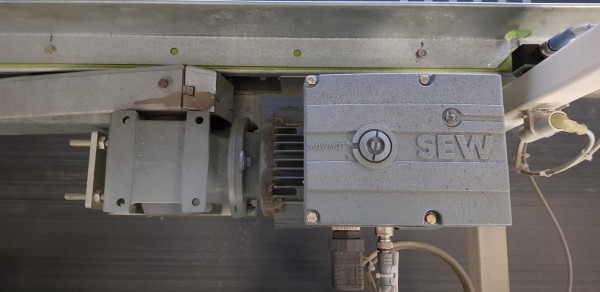

Drive: SEW gear motor S37 DT 80 N4 MM07
Electrical data: 50Hz V380-500, kW 0.15 / 0.75 / S1
Drive drum (AT): Ø = 81 mm
Belt return roller: Ø = 50 mm
Belt type: NNT 10 ENBU
year of construction: 2001
Side guide one and both sides
Prices net plus VAT, ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
|Conveying length in mm:||22000|
|Nominal / outside width in mm:||650|
|Belt width in mm:||500|
|Engine type:||SEW Eurodrive Zentralantrieb mit Spannstation|
|Conveyor speed m / s:||freely adjustable|
|scope of delivery:||without supports and side guides|
