This product is currently not available.

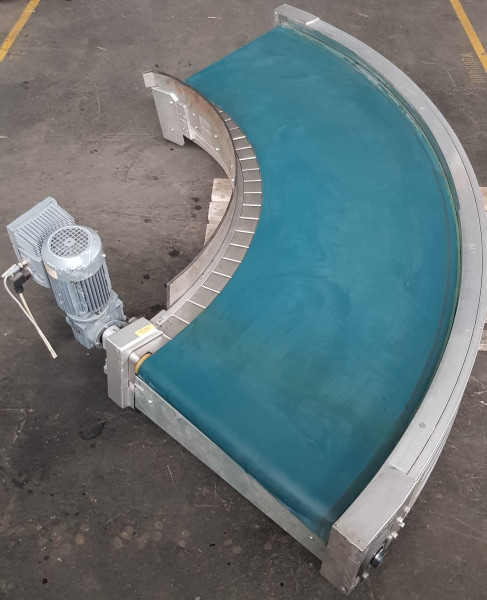

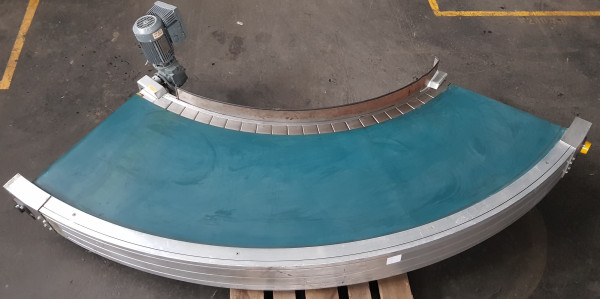

Transnorm spiral helix belt curve conveyor right 90°-750-650 IR1200

€3,534.00 *

Prices plus VAT plus shipping costs

Delivery time 5-10 Days Workdays

Order number: RA2437

Transnorm spiral helix belt curve conveyor right 90°-750-650 IR1200 RA2437 Technical data:... more

Close menu

Product information "Transnorm spiral helix belt curve conveyor right 90°-750-650 IR1200"

Transnorm spiral helix belt curve conveyor right 90°-750-650 IR1200

RA2437

Technical data:

Frame width (NB): 750 mm
belt width (GuB): 650 mm
height (BH): 210 mm
Inner radius (IR): 900 mm
Conveying angle: 90° degrees
decline: 200 mm / 90° = 800 mm / 360°
support feet: optionally available
Conveying speed (v m/s): contact us

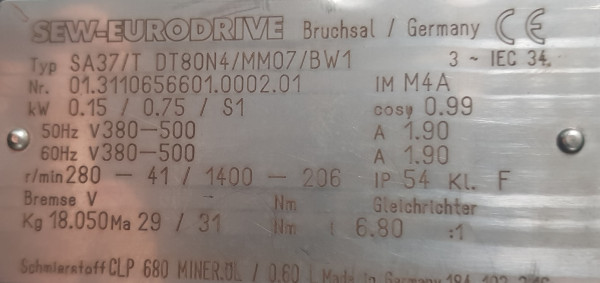

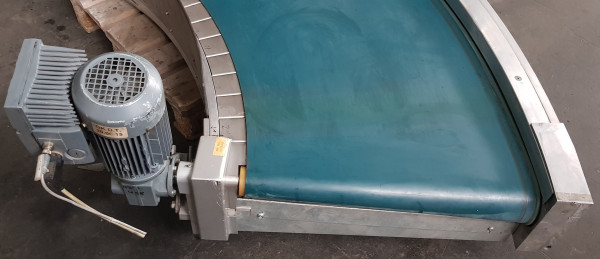

Drive: SEW gear motor
Electrical data: 50Hz V380-500, kW 0.11 / 0.55 / S1
Belt: double layer, green, smooth, KT36 (wear see pictures)

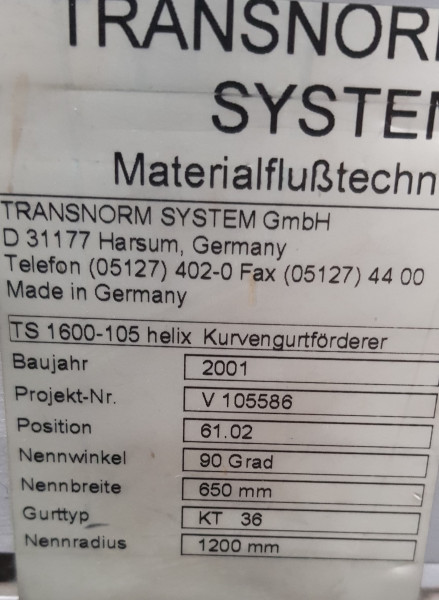

Year of construction: 2001

Optionally available:
Supports
Side guide one and both sides
frequency converter for stepless speedcontroll

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

condition:	good (used)
Driven:	YES
Running direction:	RIGHT
Engine type:	SEW Eurodrive
angle:	90°
scope of delivery:	including Movimot frequency converter
KW:	0,55/S1
Construction year:	2001
Belt width in mm:	700
Nominal / outside width in mm:	750
Ampere:	1,60
Nominal / inner radius in mm:	1200
Slope / gradient:	200 mm / 90°
