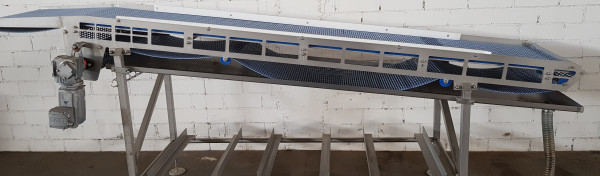

Kersting plastic chain conveyor belt conveyor conveyor Inclined conveyor Drip tray washing GF 3350-720-620

Preview: Kersting plastic chain conveyor belt conveyor conveyor Inclined conveyor Drip tray washing GF 3350-720-620

Kersting plastic chain conveyor belt conveyor conveyor Inclined conveyor Drip tray washing GF 3350-720-620

€4,200.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA1974

Kersting plastic chain conveyor belt conveyor conveyor Inclined conveyor washing GF 3350-720-620... more

Close menu

Product information "Kersting plastic chain conveyor belt conveyor conveyor Inclined conveyor Drip tray washing GF 3350-720-620"

Kersting plastic chain conveyor belt conveyor conveyor Inclined conveyor washing GF 3350-720-620

RA1974

Technical data:

Conveying length (NL): 3350 mm
Framework width (NB): 720 mm
belt width (GuB): 620 mm
Height/band run (BH): from 920 mm to 1250 mm rising +/- 50 mm height adjustment
Conveying speed (v m/s): pleas contact us with you needed Speed
Drive: DEW- Gearmotor
Electrical data: 400 V / 50 Hz / 0,37 kW
Belt: plastic chain with toothwheel drive
Year of construction: 2013

Special feature / accessories:
Drip tray to catch the washing water

All prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year:	2013
condition:	good (used)
Conveying length in mm:	3350
Nominal / outside width in mm:	720
Belt width in mm:	620
Driven:	YES
Engine type:	SEW Eurodrive
KW:	0,37/S1
scope of delivery:	including supports and side guides
