Product information "Transnorm spiral helix belt curve conveyor left 90°-825-600 IR600"

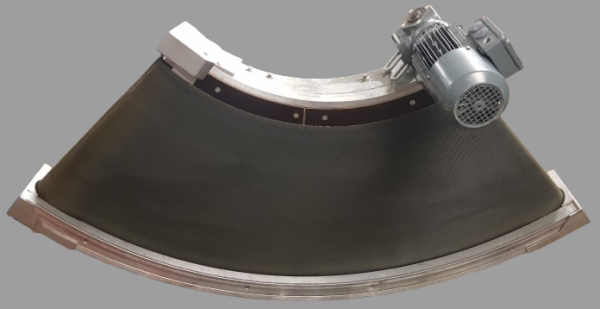

Transnorm spiral helix belt curve conveyor left 90°-825-600 IR600

RA2401

Technical data:

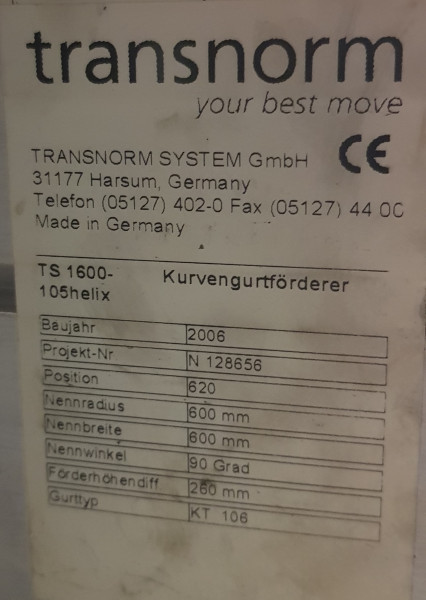

Type designation: belt curve conveyor TS 1600-105 Helix
frame width (NB): 825 mm
belt width (GuB): 600 mm
overall height (BH): 210 mm
inner radius (IR): 600 mm

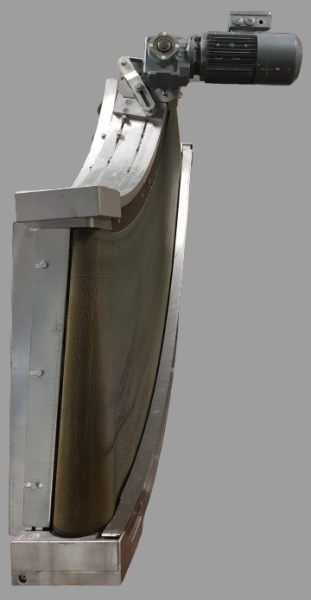

Conveying angle: 90° degrees (coiled 260 mm rising)
Incline: 260 mm / 90° = 1040 mm / 360°
Support feet: optionally available
Conveying speed (v m/s): 0.4

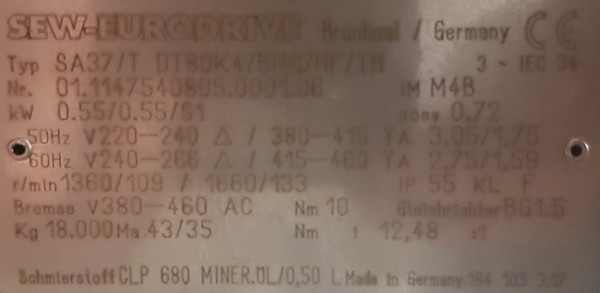

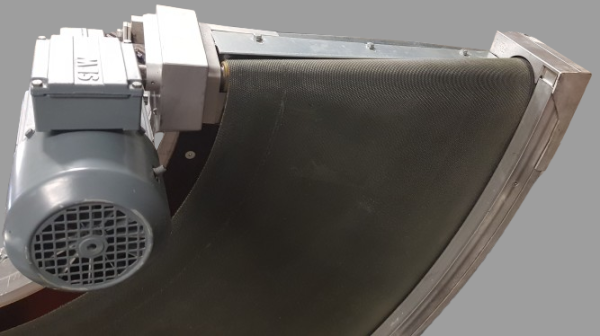

Drive: SEW gearmotor
Electrical data: 50Hz V380-500, kW 0.55 / S1

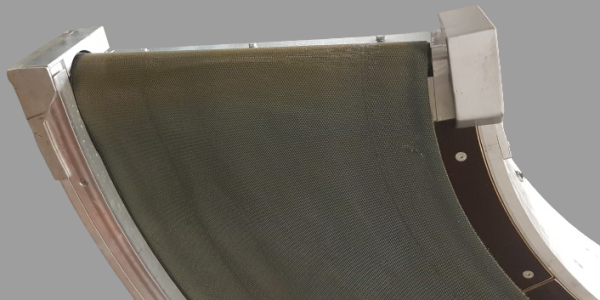

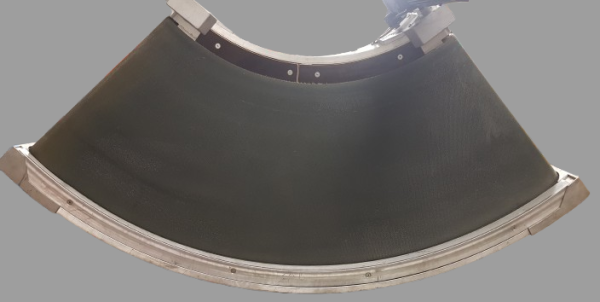

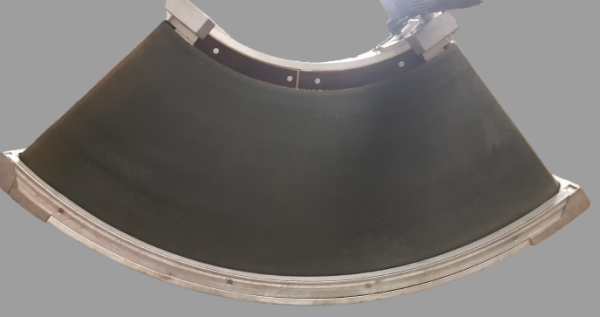

Belt: double layer, green, smooth, KT106 (wear see pictures)
year of construction: 2006

Optionally available:
Supports
Side guide one and both sides
frequenzy converter for steples speedcontroll

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

condition:	good (used)
scope of delivery:	including Movimot frequency converter, without supports and side guides
Driven:	YES
Nominal / inner radius in mm:	600
angle:	90°
Belt width in mm:	600
Conveyor speed m / s:	0,4
KW:	0,55/S1
Construction year:	2006
Running direction:	LINKS
Engine type:	Bremse
Nominal / outside width in mm:	825
Slope / gradient:	260 mm / 90°
