Kannegiesser belt conveyor belt conveyor belt GF 1000-680-600

€2,249.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

  • RA1302
  • 80.251.604
Kannegiesser belt conveyor Belt conveyor GF 1000-680-600 RA1302   The Kannegiesser... more
Product information "Kannegiesser belt conveyor belt conveyor belt GF 1000-680-600"

Kannegiesser belt conveyor Belt conveyor GF 1000-680-600

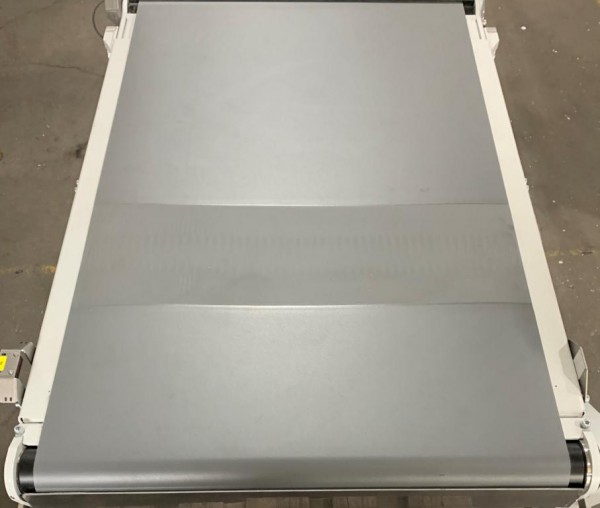

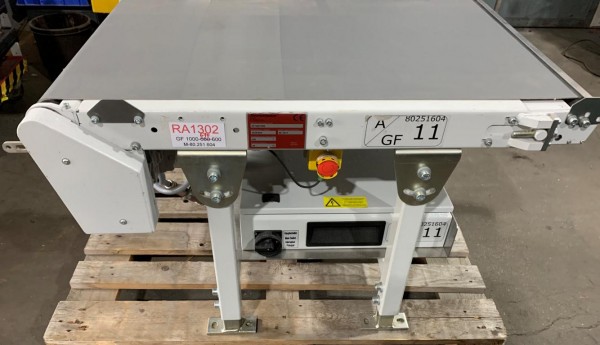

The Kannegiesser conveyor belt is from 2017 and is in good (used) condition. The belt conveyor has a 400V motor MKM TYPE-1 681.015 with frequency converter to regulate the conveyor speed. The shown supports are included in the delivery.

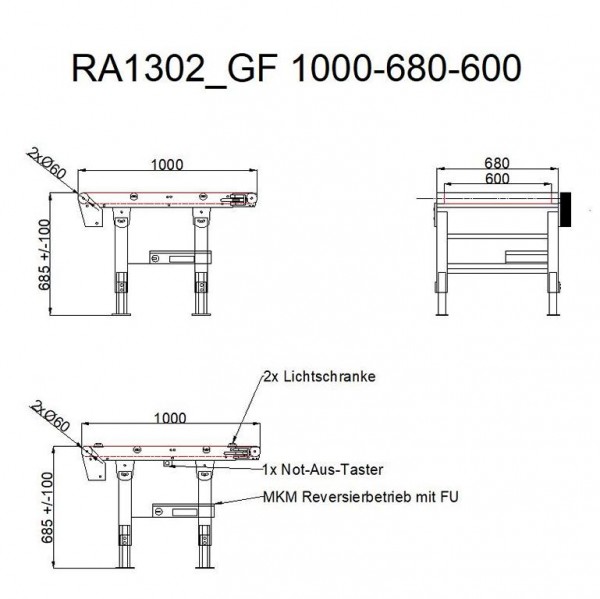

Technical data:

conveying length (NL): 1000 mm
Framework width (NB): approx 680 mm
belt width (GuB): 600 mm
Height / Belt run (BH): 685 mm +/- 100 mm
Number of support feet: 2 pieces
Conveying speed (v m/s): adjustable up and down with frequency converter
Drive: Normal Motor
Electrical data: 400V / 50Hz / 0,37kW
Deflection drum (UT): Ø = 60 mm
Belt: 2-layer PVC belt, grey, smooth

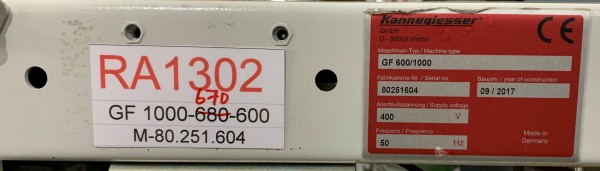

Year of construction: 09/2017

Special feature / accessories:
1x MKM TYPE-1 681.015/4 with frequency converter
1x emergency stop switch on one side under scaffolding, center
2x light barrier
2x deflection drum cover


All prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year: 2017
condition: good (used)
Conveying length in mm: 1000
Nominal / outside width in mm: 680
Belt width in mm: 600
Driven: YES
Engine type: MKM Typ-1 681.015/4 mit FU
KW: 0,37/S1
Conveyor speed m / s: 0,03 - 1,3
scope of delivery: including supports

For individual, professional advice, simply contact us. Simply contact us by phone or email. We are happy to help you plan and implement your projects. We are happily looking forward to hearing from you. Sincerely, Your team at Dr. Sonntag GmbH & Co. KG - your specialist and contact for intralogistics
