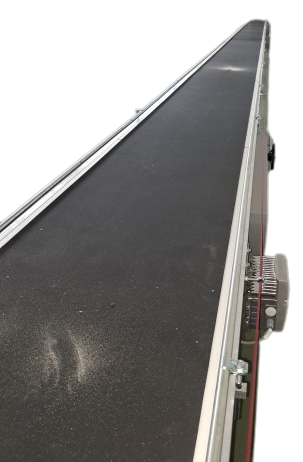

Transnorm belt conveyor belt conveyor GF 16280-700-600

€4,293.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm conveyor belt GF 16280-700-600 RA2075 Technical data: Conveyor length (NL): 16280... more
Product information "Transnorm belt conveyor belt conveyor GF 16280-700-600"

Transnorm conveyor belt GF 16280-700-600

RA2075

Technical data:

Conveyor length (NL): 16280 mm
frame width (NB): 700 mm, 800 mm with motor
belt width (GuB): 600 mm
Overall height (BH): 80 mm, 430 mm with motor
Supporting feet: optionally available
Conveying speed (v m/s): 0,42
Drive: SEW gear motor, R27 DT90S4/TH
Electrical data: 50Hz V380-500, kW 1,1 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

Construction year: 2014
condition: good (used)
Conveying length in mm: 16280
Nominal / outside width in mm: 700
Belt width in mm: 600
Driven: YES
Engine type: SEW Eurodrive Zentralantrieb mit Spannstation
KW: 1,1/S1
Conveyor speed m / s: 0,42
scope of delivery: without supports and side guides
