Product information "Kersting belt conveyor Ejector Placer Separator GF 2880-510-400"

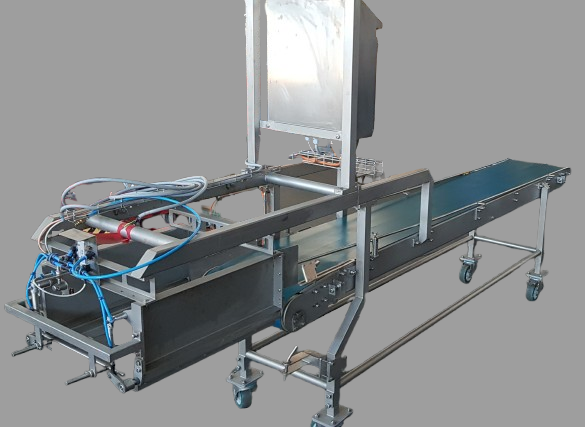

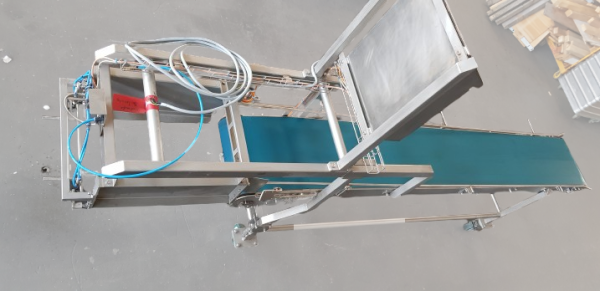

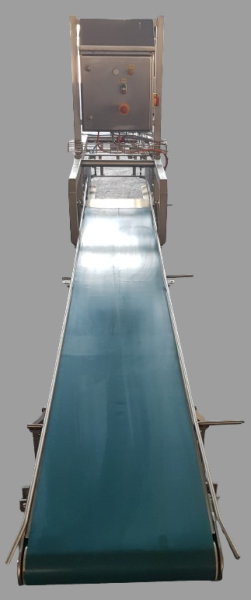

Kersting belt conveyor Ejector Placer Separator GF 2880-510-400

RA2409

Technical data:

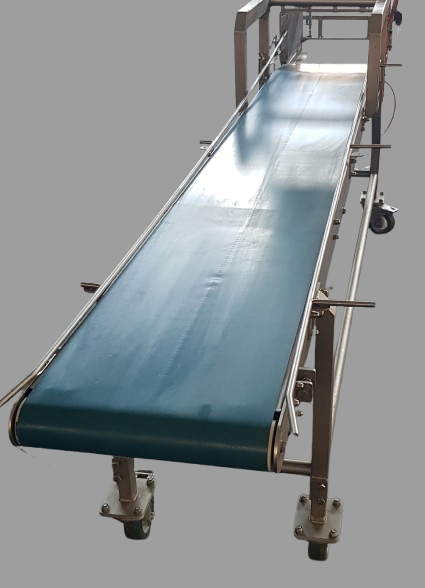

Conveyor length (NL): 2880 mm
frame width (NB): 510 mm
belt width (GuB): 400 mm
Overall height (BH): 780 mm intake and 640 mm output
Supporting feet: includet
Conveying speed (v m/s): with Frequency converter for stepless speed change
Drive: Drum motor
Electrical data: 50Hz V380-500, kW 0,55 S1
Drive drum: Ø = 100 mm
Belt return roller: Ø = 100 mm
parcele size: (max 550) x (390...420) x (max 200) LxWxH

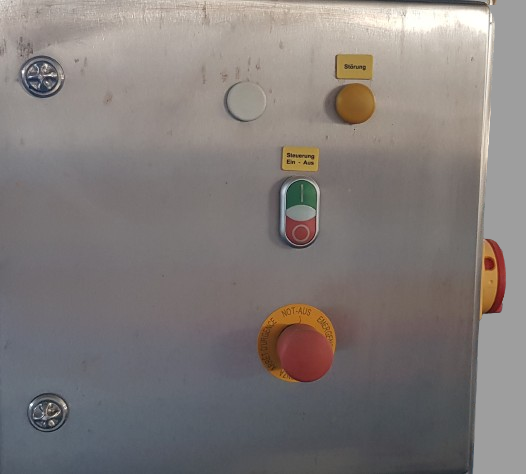

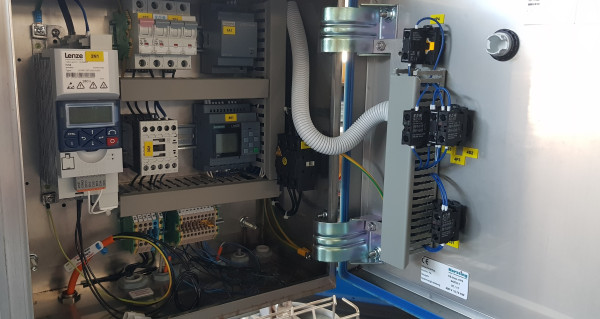

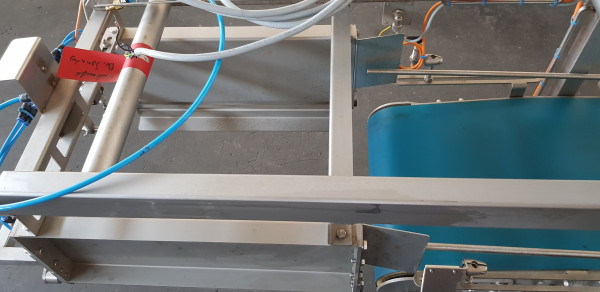

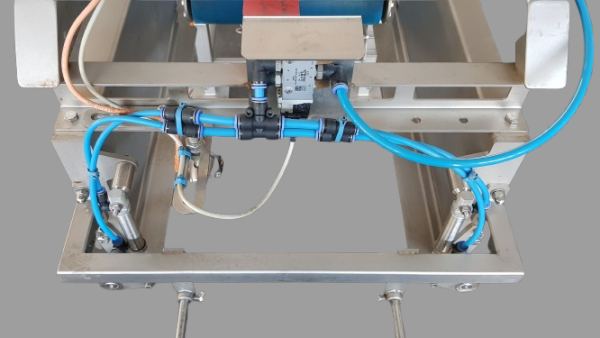

Controling and pneumatic included
Food-safe with stainless steel design

Optionally available:
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

Construction year:	2014
condition:	good (used)
Conveying length in mm:	2880
Nominal / outside width in mm:	510
Belt width in mm:	400
Driven:	YES
Engine type:	Trommelmotor
KW:	0,55/S1
Conveyor speed m / s:	freely adjustable
scope of delivery:	inklusive Lichtschranken, inklusive Frequenzumrichter, including supports and side guides
