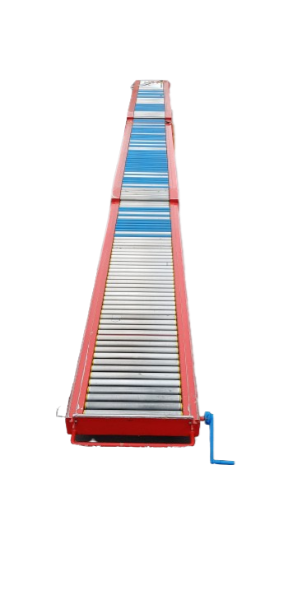

Caljan telescopic roller conveyor 600-5/6.5

Caljan telescopic roller conveyor 600-5/6.5

RA2166

Base part with 2 manualy retractable telescopic elements. The telescope can be moved in or out with a crank handle on the take-off side.

Attention: ONLY for trucks loading

Type: 600-5/6.5
Year of manufacture: 1998
Condition: functionally tested faultless
optical: minimal traces of use
fixed part with double supports: 400 mm hight
Telescope elements 2 pieces: manualy retractable and extendable
Telescope extension/retraction: crank handle on operator take-off side
Accumulating effect: accumulating with slope

Technical data:
Staionary part
Length: 5000, +6500 mm extention Part
Roll width: 600 mm
Outside width: 930 mm
Height 1 transfer: 400 mm
- Feeding e.g. via belt conveyor on customer side
Rollers galvanized and plastic: d = 50 mm
Roller pitch super narrow: RTLG = 65 mm
Protective cover: bottom complete
Operation/crank handle: front side
Selfholding/selfstopping crank
attached light bar
Color: red, original color is here for an additional painting
Supports: 2 double supports rigid
Base plates: 4 base plates with holes
load/m: 50 kg

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany
