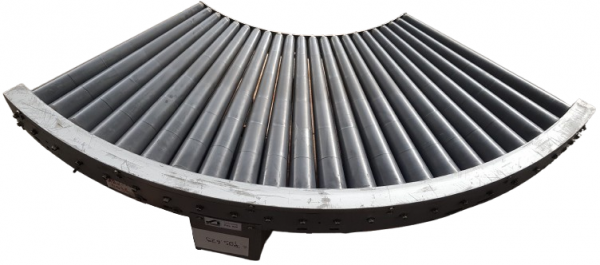

roller curve right or left tight division 90°7180°-660-600 IR500

Preview: roller curve right or left tight division 90°7180°-660-600 IR500

roller curve right or left tight division 90°7180°-660-600 IR500

€3,551.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2314

roller curve right or left tight division 90°/190°-660-600 IR500 RA2314 Make: Running... more

Close menu

Product information "roller curve right or left tight division 90°7180°-660-600 IR500"

roller curve right or left tight division 90°/190°-660-600 IR500

RA2314

Make:
Running direction: 90° right running/ left running

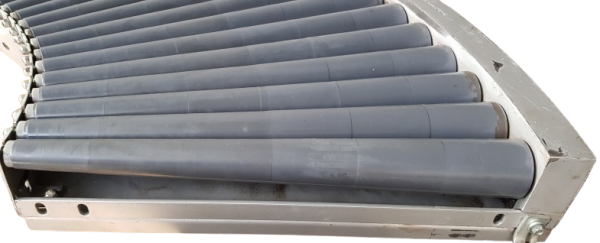

Roller width (RB): 600 mm conical, plastic coating
Nominal/outer width (NB): 660 mm

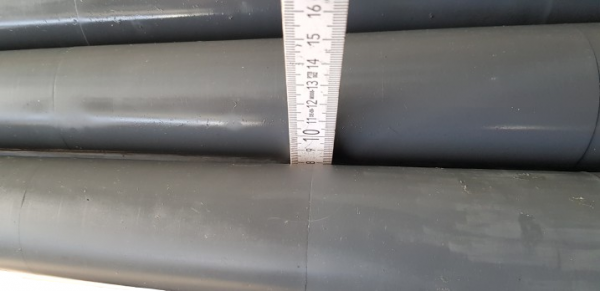

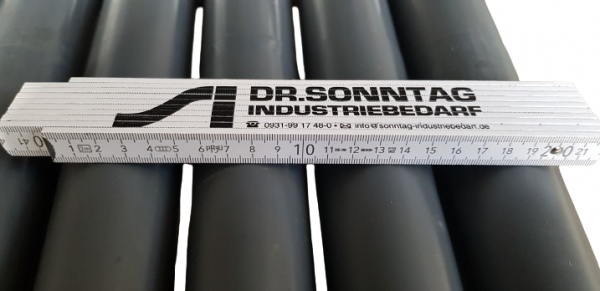

Center roller axle distance: 60mm, 3mm roller distance
Inner radius (IR): 500 mm
Overall height frame: 120 mm
Height including motor: 400 mm

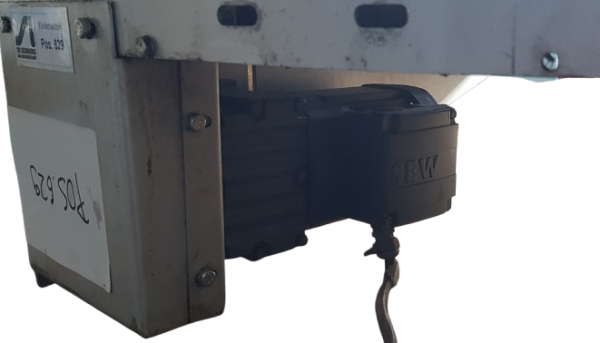

Motor MOVI-Mot 3x300-500V 0,25kW 1400 u/min max
Brake 220-240V
Gear motor: SEW
Conveyor speed: 0.6 m/s

2 90° curves can be screwed together to 180°

Optionally available:
Supports Sideguides
Sideguides
Frequency converter for stepples speed controll

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, Gattingerstreet 11 B & C, 97076 Würzburg

Construction year:	2001
condition:	good (used)
Nominal / inner radius in mm:	500
Nominal / outside width in mm:	660
Roll width in mm:	600
angle:	90°
Driven:	YES
scope of delivery:	without supports and side guides

Zusatzinformationen

For individual, expert advice, simply get in touch with us.
Simply contact us by phone or email.
We will be happy to help you plan and implement your projects.

We look forward to hearing from you.

With kind regards

Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
