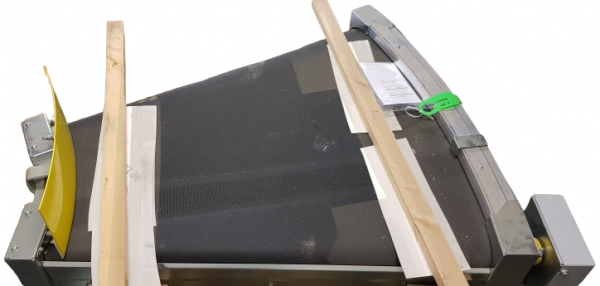

Transnorm curved belt conveyor right 30°-1270-1100-IR900

€4,200.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm belt curve conveyor right 30°-1270-1100-IR900 RA2302 Technical data: Frame... more
Product information "Transnorm curved belt conveyor right 30°-1270-1100-IR900"

Transnorm belt curve conveyor right 30°-1270-1100-IR900

RA2302

Technical data:
Frame width (NB): 1270 mm
Frame width with Bearing cover: 1390 mm
Frame width with Bearing cover and gearbox: 1480 mm
belt width (GuB): 1100 mm
height (BH): 250 mm
height motor below: 300 mm
height including motor (MH): 550 mm
Inner radius (IR): 1200 mm
Conveying angle: 30° degrees
middler conveying speed (v m/s): 1,4 m/s

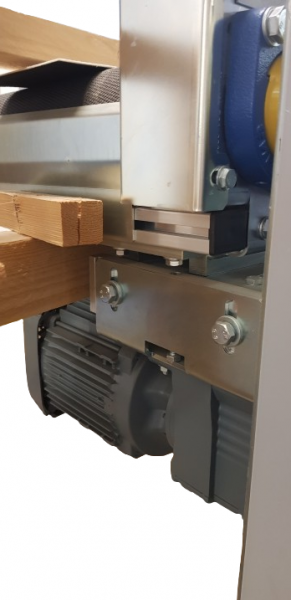

Drive: SEW motor motor with frequency converter
Electrical data: 50Hz V380-500, kW 1,5 / S1
Belt: KT 96 new
Year of construction: 2021
Height Sideguides: 194 mm

Optionally available:
Supports

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year: 2021
condition: new
Nominal / inner radius in mm: 900
Nominal / outside width in mm: 1270
Belt width in mm: 1100
angle: 30°
Driven: YES
Running direction: RIGHT

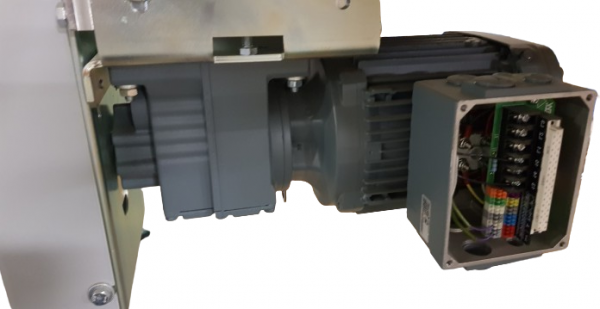

Engine type: SEW Eurodrive
KW: 1,5/S1
Conveyor speed m / s: freely adjustable
scope of delivery: including side guides without supports, including Movimot frequency converter
