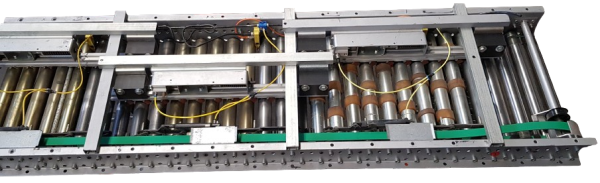

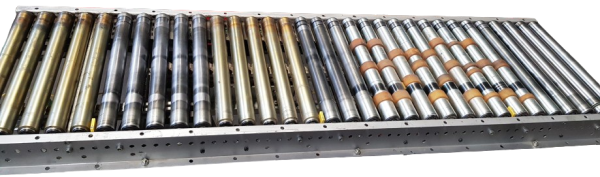

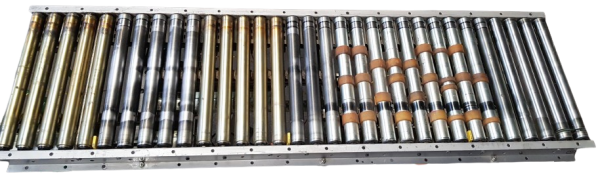

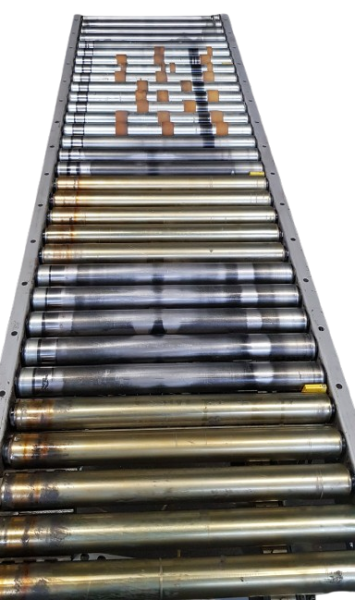

Dematic conveyor system Accumulating roller 3000-600-540

Dematic
€2,049.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

model:

Do you have any questions concerning this product?
Description Zusatzinformationen
Description
Dematic conveyor system Accumulating roller3000-600-540 RA2361/61.1 Further information... more
Close menu
Product information "Dematic conveyor system Accumulating roller 3000-600-540"

Dematic conveyor system Accumulating roller3000-600-540

RA2361/61.1

Further information

Manufacturer: Dematic
Type: Accumulating roller conveyor
Year of construction: unknown
Conveyor length (FL): 3000 mm
Condition: good (used)
Roller width (RB): 540 mm
Nominal/outer width (NB): 600 mm
Accumulation slot size: 625 mm

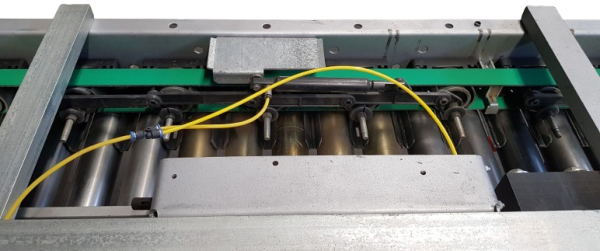

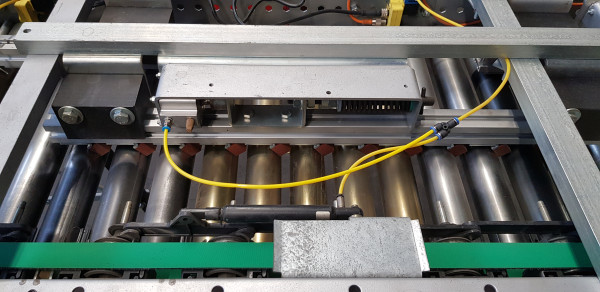

Storage slot control: Plug and Play, electro-pneumatic
Roller pitch: 62,5 mm
Wheel diameter: 50 mm

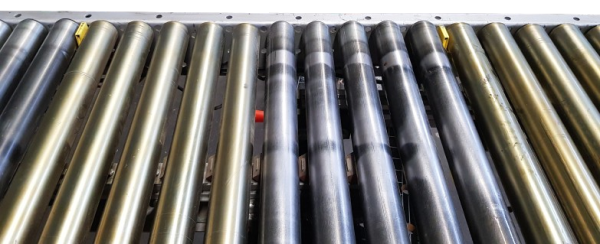

Partly rubberized for more grip when braking

Drive module RA2361:
Drive types: SEW geared motor
Conveying speed: approx. 0.5 m/s
Electrical data: 380-400V
kW depending on total length

The extension module always requires a drive module!

Optionally available e.g:

Frequency inverter for stepless speed control
Supports
Side guides
element length can be shortened up to 3m


Price: net plus VAT ex central warehouse Dr. Sonntag GmbH & Co. KG 97076 Würzburg

condition: good (used)
scope of delivery: without supports and side guides
Driven: YES
Engine type: SEW Eurodrive
Nominal / outside width in mm: 600
Conveying length in mm: 3000
Conveyor speed m / s: 0,5
Roll width in mm: 540
Roll division in mm: 62,5
nominal voltage: 380-500V
Jam detection: Lichtschranke
Stowage spaces: 30
Zusatzinformationen
Zusatzinformationen

For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.

We look forward to hearing from you.

With kind regards

Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
