Transnorm curved belt conveyor left 90°-800-600-IR600

Preview: Transnorm curved belt conveyor left 90°-800-600-IR600

Transnorm curved belt conveyor left 90°-800-600-IR600

€2,249.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2169

Transnorm curved belt conveyor left 90°-800-600-IR600 RA2169 Make: Transnorm Running... more

Close menu

Product information "Transnorm curved belt conveyor left 90°-800-600-IR600"

Transnorm curved belt conveyor left 90°-800-600-IR600

RA2169

Make: Transnorm
Running direction: 90° left running
belt conveyor width (RB): 600 mm
Nominal/outer width (NB): 800 mm
Nominal/outer width with Motor (MB): 1020 mm
Inner radius (IR): 600 mm
Height frame (BH): 200 mm
Height frame with Motor (MH): 400 mm

V 220/380, 0,37kW
Conveying speed: contat us

Optionally available:
Supports
Side guide one- and both sideds
Frequency converter

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year:	1998
condition:	gut
Nominal / inner radius in mm:	600
Nominal / outside width in mm:	800
Belt width in mm:	600
angle:	90°
Driven:	YES
Running direction:	LINKS

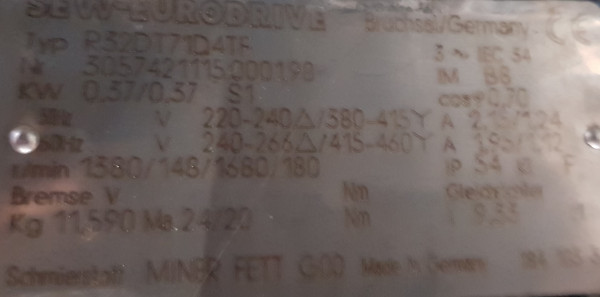

Engine type:	SEW Eurodrive
KW:	0,37/S1
Conveyor speed m / s:	bitte Kontaktieren
scope of delivery:	without supports and side guides
