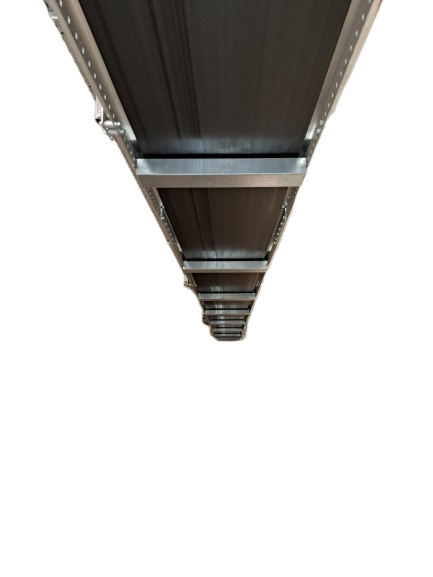

Transnorm conveyor belt GF 13750-600-500
Conveyor length (NL): 13750 mm
frame width (NB): 600 mm, 700 mm with motor
belt width (GuB): 500 mm
Overall height (BH): 80 mm, 430 mm with motor
Supporting feet: optionally available
Conveying speed (v m/s): Contact us and we will try to meet your preferred conveying speed.
Drive: SEW gear motor, R40 DT80N4
Electrical data: 50Hz V380-500, kW 0,75 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)
Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany
|Conveying length in mm:||13750|
|Nominal / outside width in mm:||600|
|Belt width in mm:||500|
|Engine type:||SEW Eurodrive Zentralantrieb mit Spannstation|
|Conveyor speed m / s:||bitte Kontaktieren|
|scope of delivery:||without supports and side guides|
