Transnorm Belt conveyor belt conveyor belt 1200-600-500

€1,575.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm conveyor belt GF 1200-600-500 RA2432 Technical data: Conveyor length (NL): 1200 mm... more
Product information "Transnorm Belt conveyor belt conveyor belt 1200-600-500"

Transnorm conveyor belt GF 1200-600-500

RA2432

Technical data:

Conveyor length (NL): 1200 mm
frame width (NB): 600 mm, 700 mm with motor
belt width (GuB): 500 mm
Overall height (BH): 80 mm, 330 mm with motor
Supporting feet: optionally available
Conveying speed (v m/s): 0.53

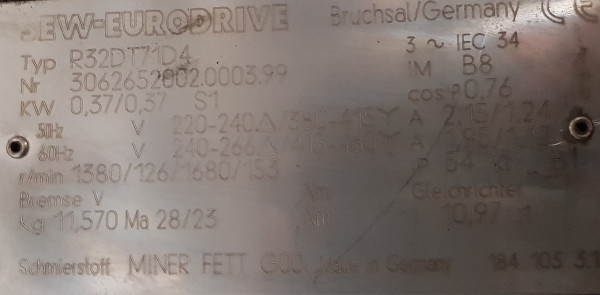

Drive: SEW gear motor
Electrical data: 50Hz V380-500, kW 0,37 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

Construction year: 1999
condition: good (used)
Conveying length in mm: 1200
Nominal / outside width in mm: 600
Belt width in mm: 500
Driven: YES
Engine type: SEW Getriebemotor
KW: 0,55/S1
Conveyor speed m / s: 1,42
scope of delivery: without supports and side guides
