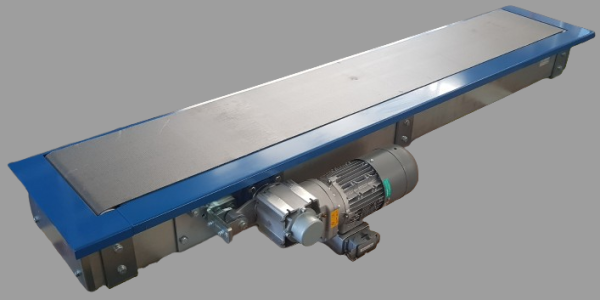

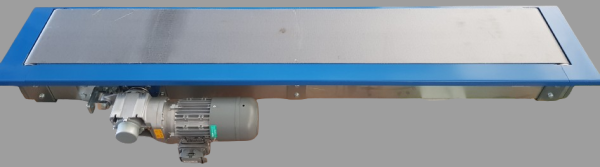

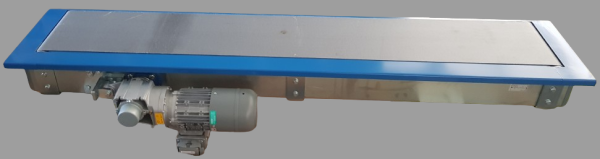

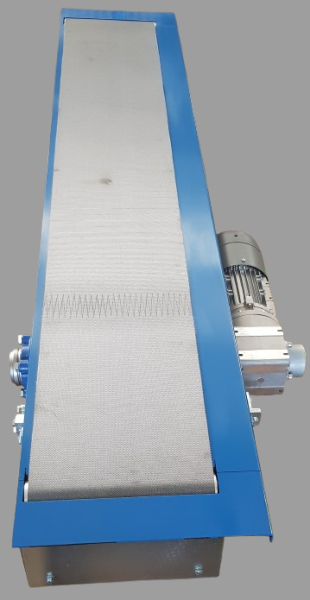

Transnorm conveyor belt GF 2100-400-300
€2,413.00 *
Prices plus VAT plus shipping costs
Delivery time approx. 5-10 days.
Pick up by arrangement.
- Order number: RA2405
Viewed
Prices plus VAT plus shipping costs
Delivery time approx. 5-10 days.
Pick up by arrangement.
Transnorm conveyor belt GF 2100-400-300
RA2405
Technical data:
Make: Transnorm
Model: TS 6565 motor-driven belt diverter D=65mm
Conveyor length (NL): 2100 mm
Frame width (NB): 400 mm, 600 mm with motor
Belt width (GuB): 300 mm
Overall height (BH): 200 mm
Support feet: optionally available
Conveyor speed (v m/s): 2.0

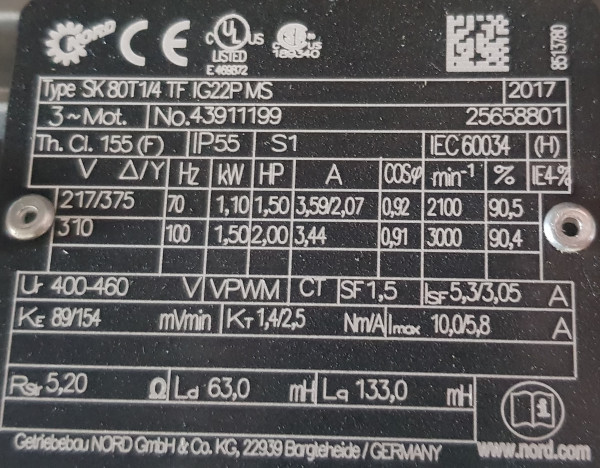

Drive: Nord
Electrical data: 50Hz V380-500, kW 1.1 S1
Drive pulley: Ø = 81 mm
Belt return roller: Ø = 81 mm
Optionally available:
Supports
Lateral guide on one and both sides
Frequency inverter for stepless speed change
Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
| Construction year: | 2017 |
| condition: | Ausstellungsstück |
| Conveying length in mm: | 2100 |
| Nominal / outside width in mm: | 400 |
| Belt width in mm: | 300 |
| Driven: | YES |
| Engine type: | Nord |
| KW: | 1,1/S1 |
| Conveyor speed m / s: | 2 |
| scope of delivery: | without supports and side guides |
For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.
We look forward to hearing from you.
With kind regards
Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
