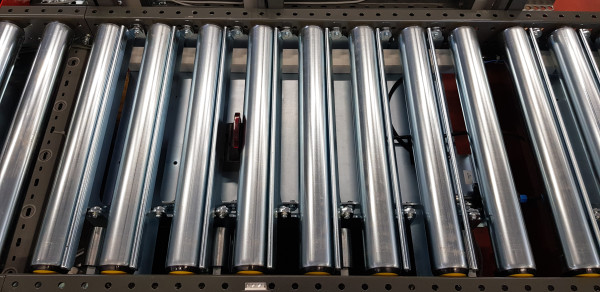

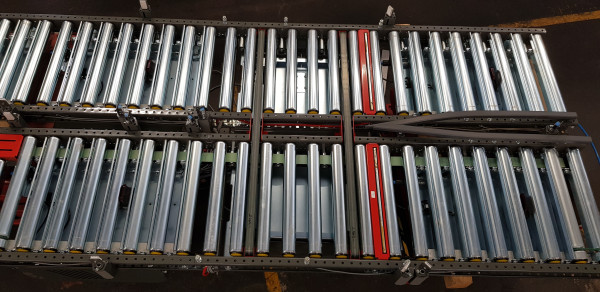

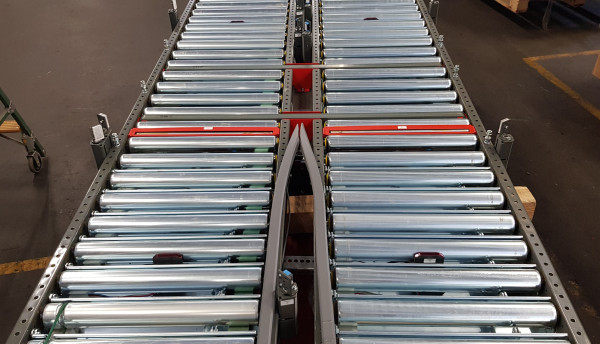

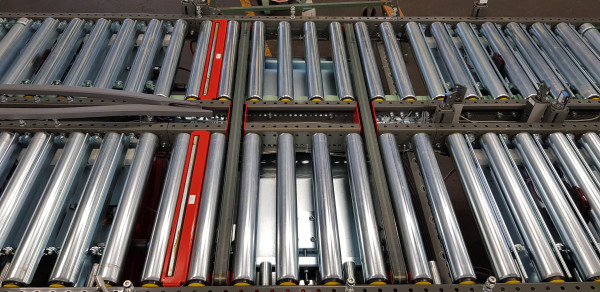

Knapp transfer roller conveyor Toothed belt slider 90° 2900/2270-510-450
Prices plus VAT plus shipping costs
Delivery time approx. 5-10 days.
Pick up by arrangement.
- Order number: RA2417
Knapp transfer roller conveyor Toothed belt slider 90° 2900/2270-510-450
RA2417
Make: Knapp
Running direction: both directions
Roller width (RB): 450 mm
Nominal/outer width (NB): 710 mm
Length: 2900 mm and 2270 mm
Roller diameter: 50 mm
Roller spacing: 90 mm
Frame height: 90 mm
Drive section height: +250 mm downwards
Distance between belts: 330 mm
Belt width: 250 mm
Number of accumulation positions: 5
Accumulation position size: 700 mm
Motor overslide belts: SEW-Motor 3x 300-500V
Motor Roller conveyors: Interroll EC300 24V
inkluding Pneumatic overslide belts and end stop
Conveyor speed: freely adjustable up to 1,25m/s with Interroll EC300 Motor
Optionally available:
Supports
Side guide one and both sides
Price: plus VAT ex central warehouse Dr. Sonntag GmbH & Co. KG 97076 Würzburg
| nominal voltage: | 24V, 380-500V |
| Construction year: | 2015 |
| condition: | Ausstellungsstück |
| Conveying length in mm: | 2900 |
| Nominal / outside width in mm: | 510 |
| Roll width in mm: | 450 |
| Roll division in mm: | 90 |
| Driven: | YES |
| Engine type: | SEW Eurodrive , Interroll EC 300 |
| Conveyor speed m / s: | bis 1,25m/s |
| scope of delivery: | inklusive Pneumatische Ventile und Zylinder, including supports |
