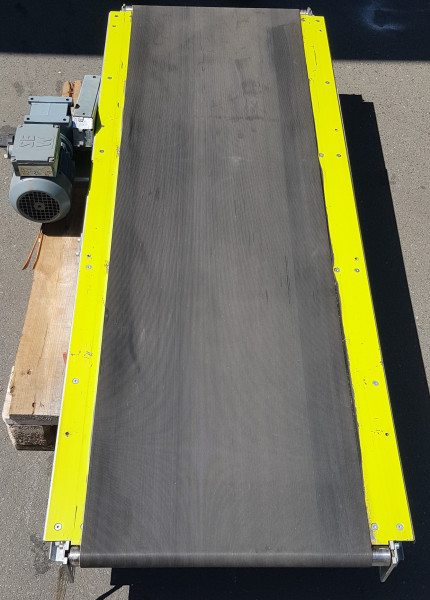

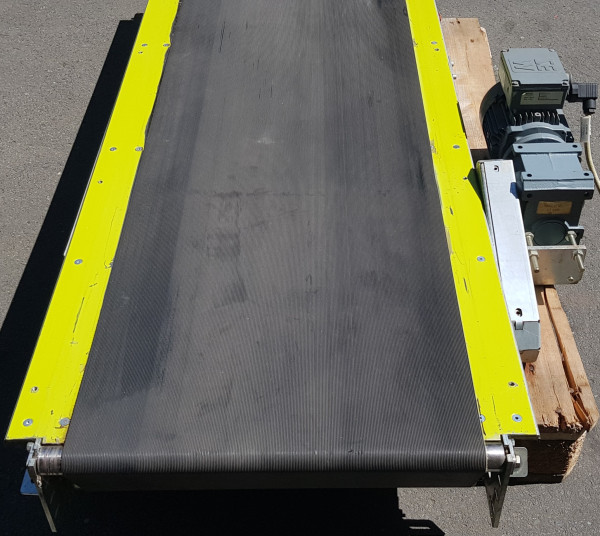

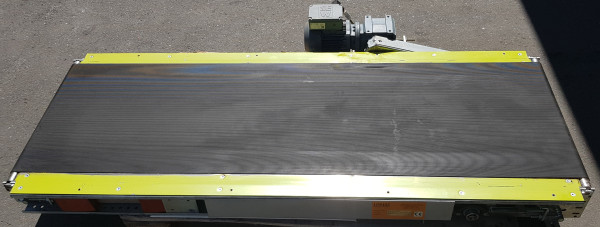

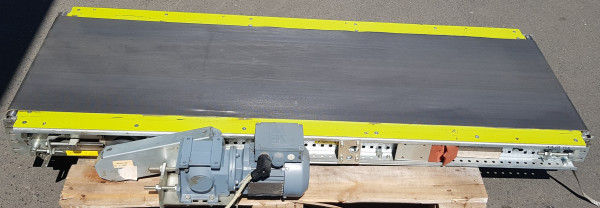

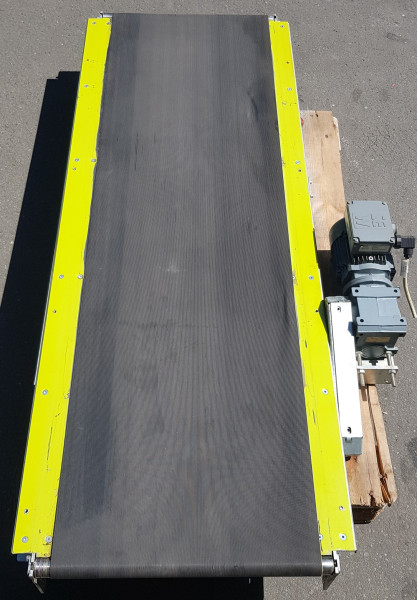

Lippert belt conveyor belt conveyor GF 1715-650-500

Preview: Lippert belt conveyor belt conveyor GF 1715-650-500

Lippert belt conveyor belt conveyor GF 1715-650-500

€1,970.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2484

Lippert belt conveyor GF 1715-650-500 RA2484 Technical data: Conveying length (NL): 1715... more

Close menu

Product information "Lippert belt conveyor belt conveyor GF 1715-650-500"

Lippert belt conveyor GF 1715-650-500

RA2484

Technical data:

Conveying length (NL): 1715 mm
Framework width (NB): 650 mm
belt width (GuB): 500 mm
height (BH): 105 mm
support feet: optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter
Drive: SEW gear motor R17 DT71D4/MM03/BW1
Electrical data: 50Hz V380-500, kW 0.075 / 0.37 / S1
Deflection roller (UR): Ø = 34 mm
Drive drum (AT): Ø = 81 mm
Belt: Type SNB-8E
Year of construction: 2001

Optionally available:
Supports
Side guides

Prices plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year:	2001
condition:	good (used)
Conveying length in mm:	1715
Nominal / outside width in mm:	650
Belt width in mm:	500
Driven:	YES
Engine type:	SEW Eurodrive Zentralantrieb mit Spannstation
KW:	0,37/S1
Conveyor speed m / s:	freely adjustable
scope of delivery:	without supports and side guides
