This product is currently not available.

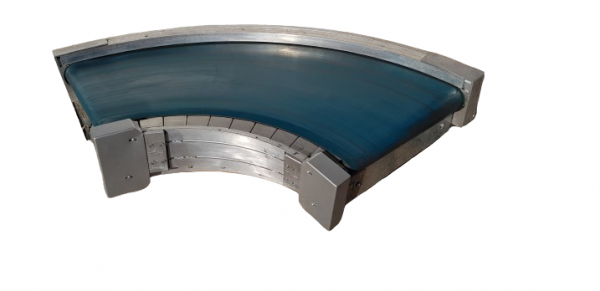

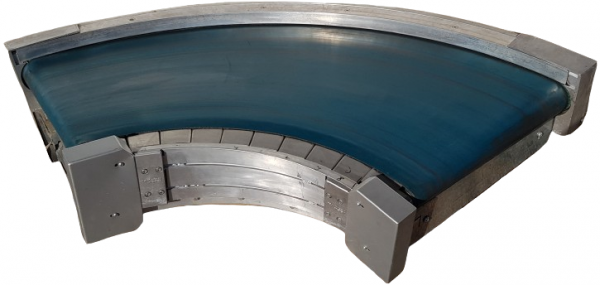

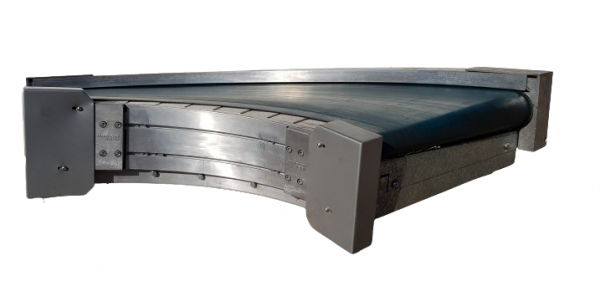

Transnorm spiral helix belt curve conveyor right 90°-750-550 IR600

Transnorm
€3,199.00 *

Prices plus VAT plus shipping costs

Delivery time 5-10 Tage Workdays

Description Zusatzinformationen
Description
Transnorm spiral helix belt curve conveyor right  90°-750-550 IR600 RA2274 Technical... more
Close menu
Product information "Transnorm spiral helix belt curve conveyor right 90°-750-550 IR600"

Transnorm spiral helix belt curve conveyor right  90°-750-550 IR600

RA2274

Technical data:

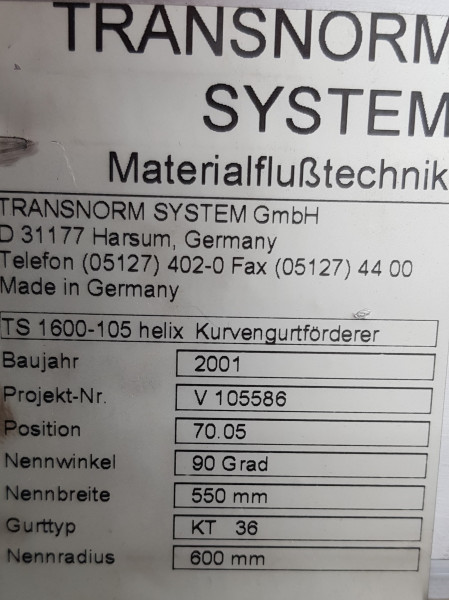

Type designation: Belt curve conveyor TS 1600-105
Conveying length middle radius (NL): 1805 mm
Frame width (NB): 750 mm
belt width (GuB): 550 mm
height (BH): 210 mm
Inner radius (IR): 600 mm
Conveying angle: 90° degrees
decline: 210 mm / 90° = 840 mm / 360°
support feet: optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter

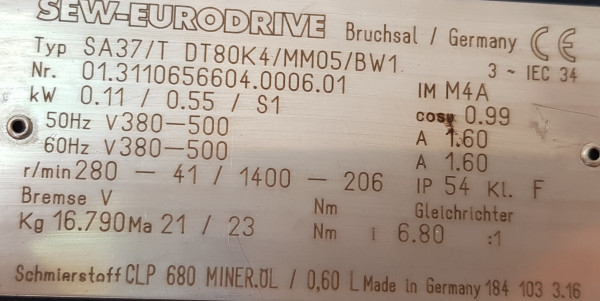

Drive: SEW gear motor SA37 DT80K4/MM05/BW1
Electrical data: 50Hz V380-500, kW 0.11 / 0.55 / S1
Belt: double layer, green, smooth, KT36 (wear see pictures)
Year of construction: 2001

Optionally available:
Supports
Side guide one and both sides
Conversion to left for rising

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg





condition: good (used)
Driven: YES
Running direction: RIGHT
scope of delivery: including side guides without supports
Nominal / inner radius in mm: 600
Engine type: SEW Eurodrive
angle: 90°
Conveyor speed m / s: freely adjustable
KW: 0,55/S1
Construction year: 2001
Nominal / outside width in mm: 750
Belt width in mm: 550
Ampere: 1,60
Slope / gradient: 210 mm / 90°
