Product information "Transnorm accumulating roller conveyor with ejector 3820-700-645"

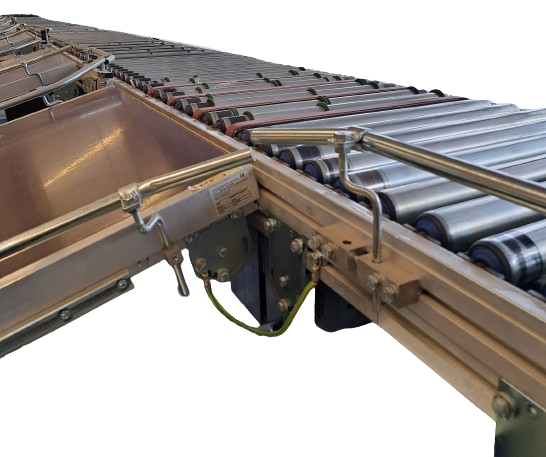

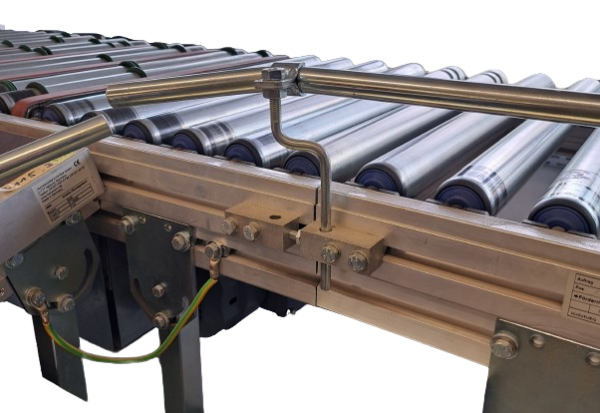

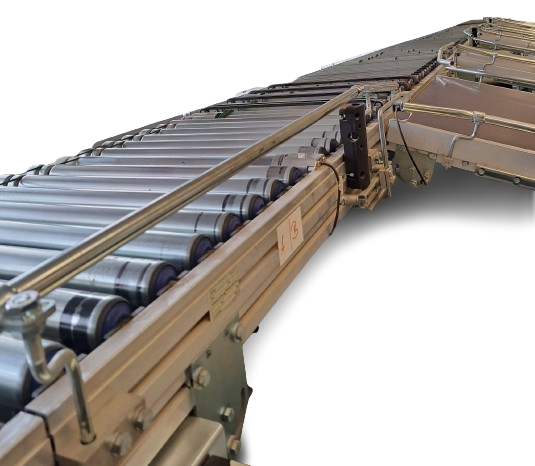

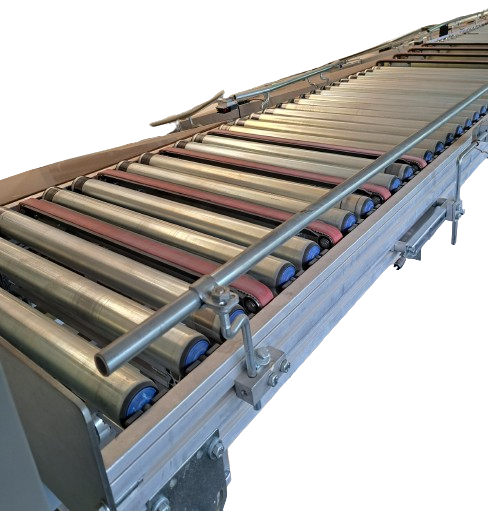

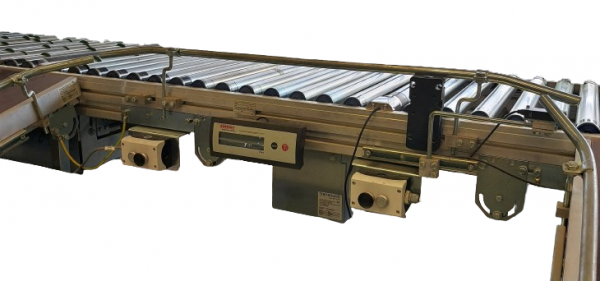

Transnorm accumulating roller conveyor with ejector 3820-700-645

RA2279

Make: Transnorm
Running direction: both directions
Roller width (RB): 645 mm
Nominal/outer width (NB): 700 mm
Length: 3820 mm
Diameter of rollers: 50 mm
Roller spacing: 60 mm

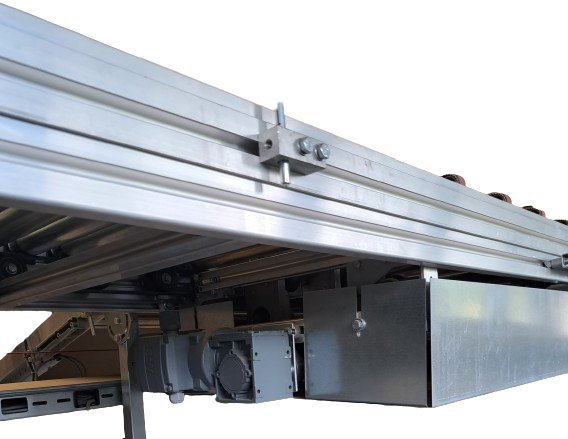

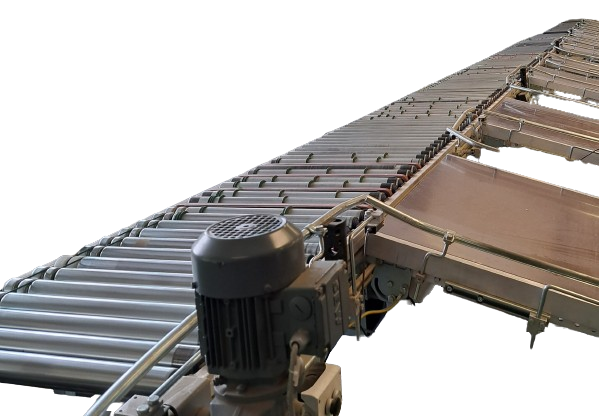

Drive: SEW geared motor, WA20/T DR63L4/TH and 24 V drum motor
Electrical data: V 380, kW 0.25/S1

Frame height: 120 mm

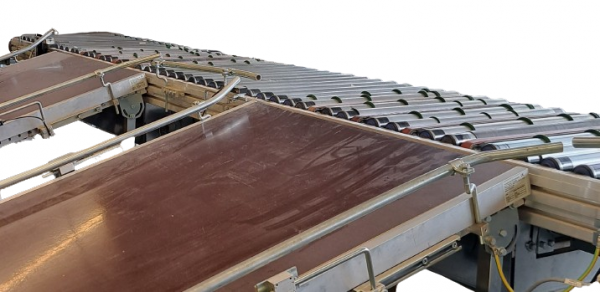

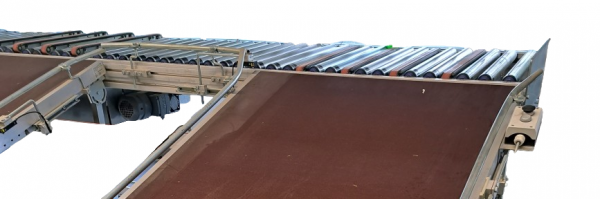

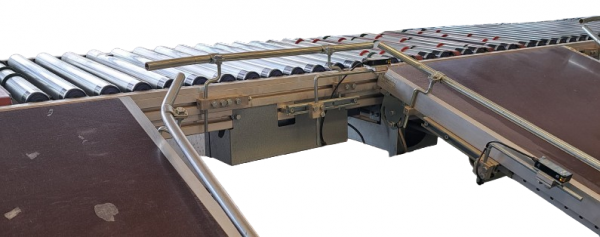

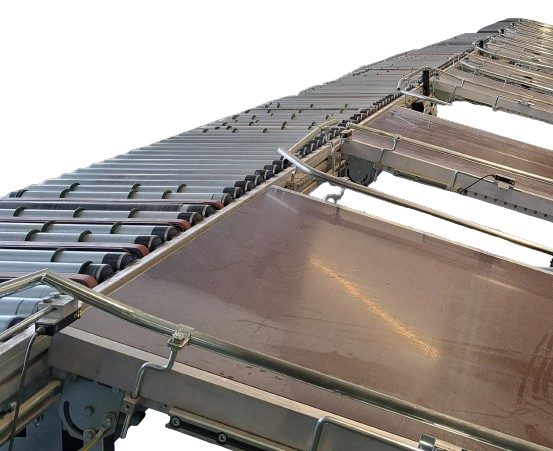

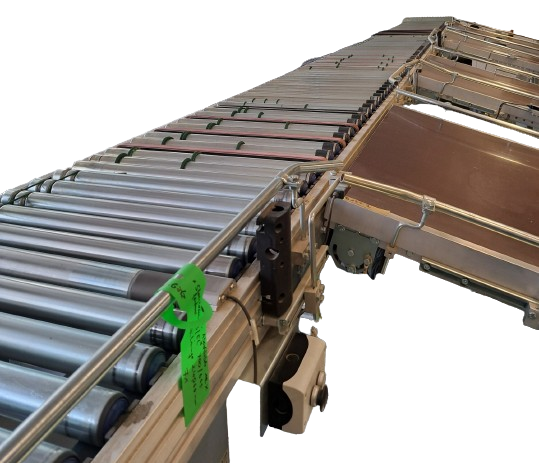

A total of 6 modules preloaded with 2 dischargers each.

There is a storage space between each discharger as a buffer

Conveying speed: 0.33 m/s

Optionally available:
Supports
Side guides on one and both sides
Frequency converter for stepless speed control
Adjustable length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

condition:	very good (used)
nominal voltage:	24V, 380-500V
Conveying length in mm:	3820
Nominal / outside width in mm:	700
Roll width in mm:	645
Roll division in mm:	60
Driven:	YES
Engine type:	SEW Eurodrive , Interroll Trommelmotor
KW:	0,25/S1
Conveyor speed m / s:	0,333
scope of delivery:	including side guides without supports
