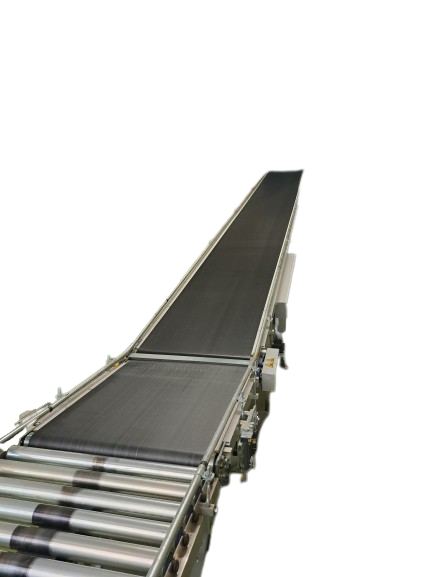

Transnorm Rising falling Incline with arch and forerun belt conveyor GF 7600-700-600

Preview: Transnorm Rising falling Incline with arch and forerun belt conveyor GF 7600-700-600

Transnorm Rising falling Incline with arch and forerun belt conveyor GF 7600-700-600

€4,296.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2101

Transnorm Rising falling Incline with arch and forerun belt conveyor GF 7600-700-600 RA2101... more

Close menu

Product information "Transnorm Rising falling Incline with arch and forerun belt conveyor GF 7600-700-600"

Transnorm Rising falling Incline with arch and forerun belt conveyor GF 7600-700-600

RA2101

Technical data:

Conveyor length (NL): 7600 mm (800 mm forerun + 6000 mm incline + 800 mm arch)
frame width (NB): 700 mm, 800 mm with motor
belt width (GuB): 600 mm
Overall height (BH): 80 mm, 430 mm with motor
Angle: freely adjustable between 0 and 15°
Supporting feet: optionally available
Conveying speed (v m/s): Frequency converter for stepless speed controll
Drive: SEW gear motor, R27 DT80N4/BMG/TH
Electrical data: 50Hz V380-500, kW 0,75 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

Construction year:	2014
condition:	good (used)
Conveying length in mm:	7600
Nominal / outside width in mm:	700
Belt width in mm:	600
Driven:	YES
Engine type:	SEW Eurodrive Zentralantrieb mit Spannstation
KW:	0,75/S1
Conveyor speed m / s:	freely adjustable
scope of delivery:	inklusive Frequenzumrichter, without supports and side guides
