Lippert Belt Conveyor Folding Belt Switch track conveyor belt 1360-750-600
Prices plus VAT plus shipping costs
Delivery time approx. 5-10 days.
Pick up by arrangement.
- Order number: RA1829
Lippert Belt Conveyor Folding Belt GF 1360-750-600
The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW motor with MOVIMOT frequency inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request.

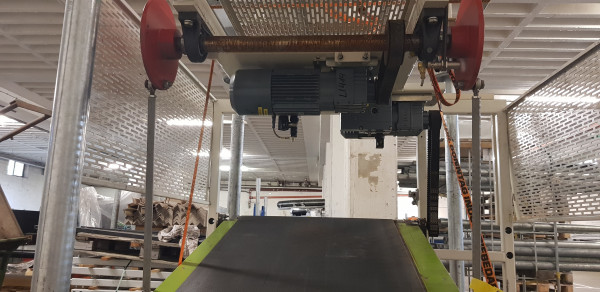

The pictures of the conveyor system shown here were taken in a logistics center while still installed.

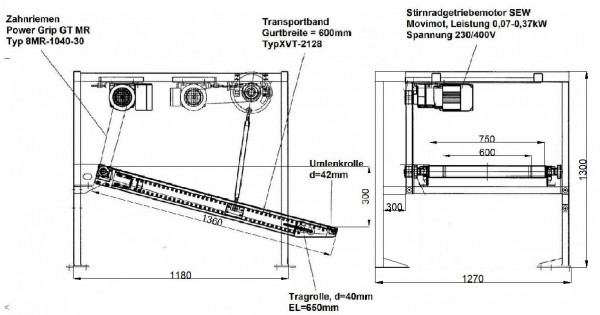

Conveying length (NL): 1360 mm
Frame width (NB): 750 mm
belt width (GuB): 600 mm
height (BH): 105 mm
Belt height: 550 mm
total height: 1070 mm
basic dimensions: 1270x1180 mm
Tilt height difference: 300 mm
Conveying speed (v m/s): 0,05-1,5m/s

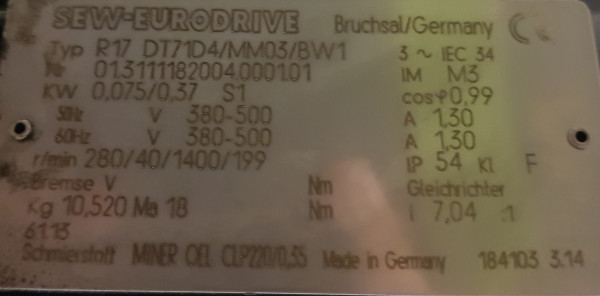

Drive: SEW gear motor S37 DT71D4/MM03/BW1
conveyor belt motor: 50Hz V380-500, kW 0.075 / 0.37 / S1
Tilting motor: 50Hz V220/400, kW 0.55 / S1
Deflection roller (UR): Ø = 42 mm
Drive drum (AT): Ø = 64 mm
Belt: Type XVT-2128
Year of construction: 2001
Side guide one and both sides
Prices net ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
|Conveying length in mm:||1360|
|Nominal / outside width in mm:||750|
|Belt width in mm:||600|
|Engine type:||SEW Eurodrive|
|Conveyor speed m / s:||freely adjustable|
|scope of delivery:||without supports and side guides|
