Transnorm roller conveyor 3800-900-855

€2,894.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm roller conveyor 3800-900-855 RA2063 Make: Transnorm Roller width (RB): 855 mm... more
Product information "Transnorm roller conveyor 3800-900-855"

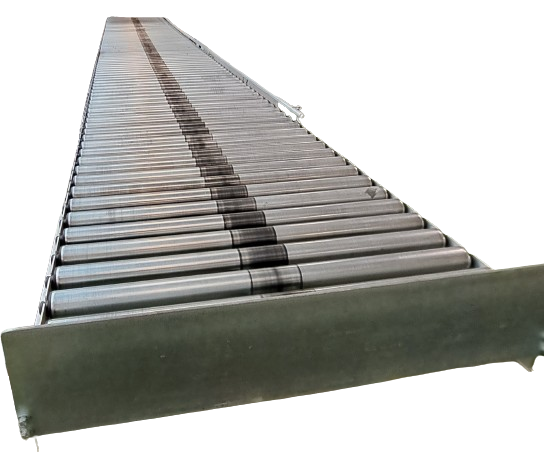

Transnorm roller conveyor 3800-900-855

RA2063

Make: Transnorm
Roller width (RB): 855 mm
Nominal/outer width (NB): 900 mm
Length: 3800 mm
Roller diameter: 30 mm
Roller distance: 38 mm

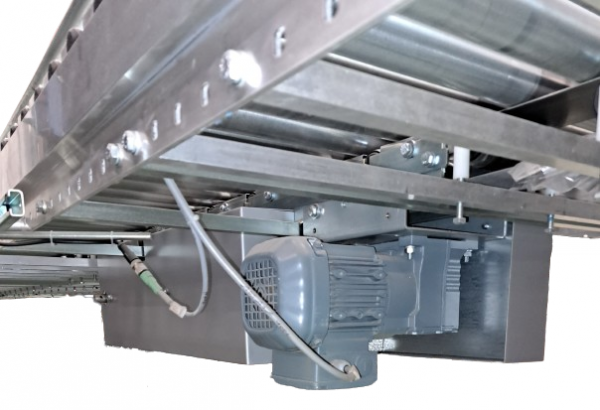

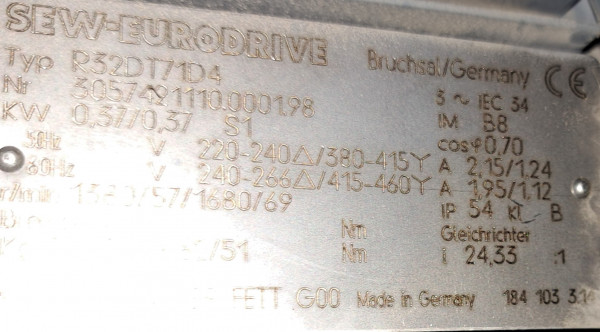

Drive motor: R32DT71D4
Eletrical Data: 380 V, 0,37 kW

Height frame: 140 mm
including Motor: 300 mm

Conveyor speed: please contact us
Optionally available:
Supports
Sideguidesfrequency converter for stepples speed controlling

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

Construction year: 1998
condition: good (used)
nominal voltage: 380-480 V
Conveying length in mm: 3800
Nominal / outside width in mm: 900
Roll width in mm: 855
Roll division in mm: 38
Driven: YES
Engine type: SEW Eurodrive
KW: 0,37/S1
scope of delivery: including side guides without supports
