Lippert belt conveyor belt conveyor GF 1285-650-500
Prices plus VAT plus shipping costs
Delivery time approx. 5-10 days.
Pick up by arrangement.
- Order number: RA1378

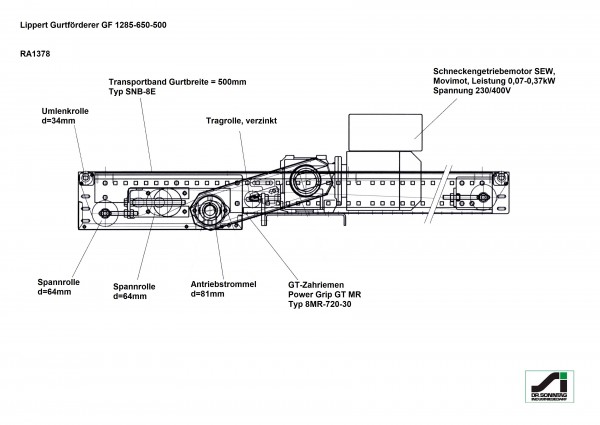

Lippert belt conveyor GF 1285-650-500
The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW motor with MOVIMOT frequency inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request.

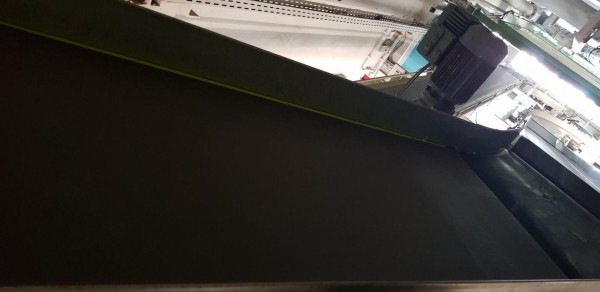

The pictures of the conveyor system shown here were taken in a logistics center while still installed.
Conveying length (NL): 1285 mm
Frame width (NB): 650 mm
belt width (GuB): 500 mm
height (BH): 105 mm
Support feet: optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter

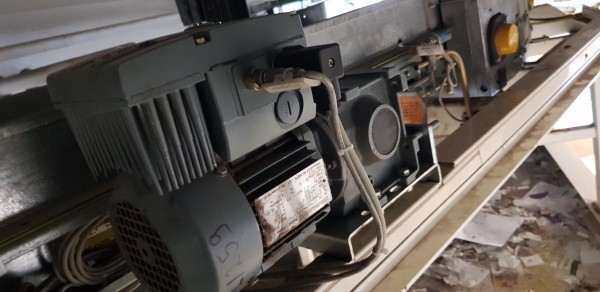

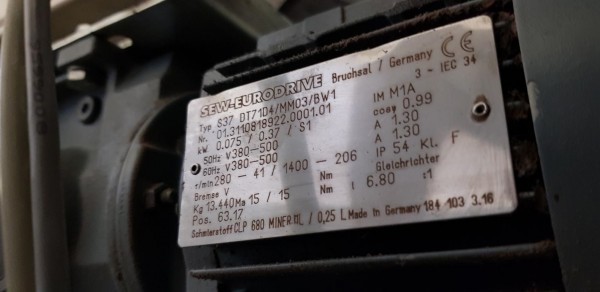

Drive: SEW gear motor S37 DT71D4/MM03/BW1
Electrical data: 50Hz V380-500, kW 0.075 / 0.37 / S1
Deflection drum: Ø = 64 mm
Drive drum: Ø = 81 mm
Belt type: SNB 8 E
year of construction: 2001
Side guide one and both sides
Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
|Conveying length in mm:||1285|
|Nominal / outside width in mm:||650|
|Belt width in mm:||500|
|Engine type:||SEW Eurodrive|
|Conveyor speed m / s:||0,8|
|scope of delivery:||without supports and side guides|
For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.
We look forward to hearing from you.
With kind regards
Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
