Transnorm right align roller conveyor side conveyor 3470-1830-1450

€3,459.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm right flush roller conveyor 3470-1830-1450 RA1855 Make: Transnorm Basic dimensions:... more
Product information "Transnorm right align roller conveyor side conveyor 3470-1830-1450"

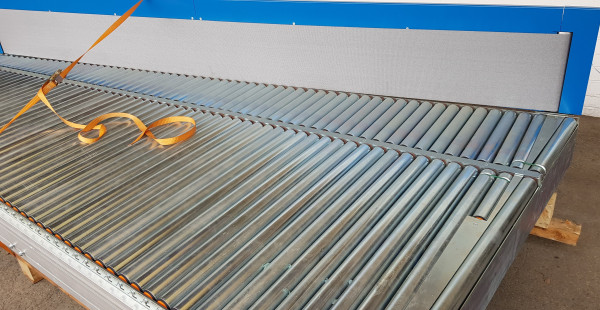

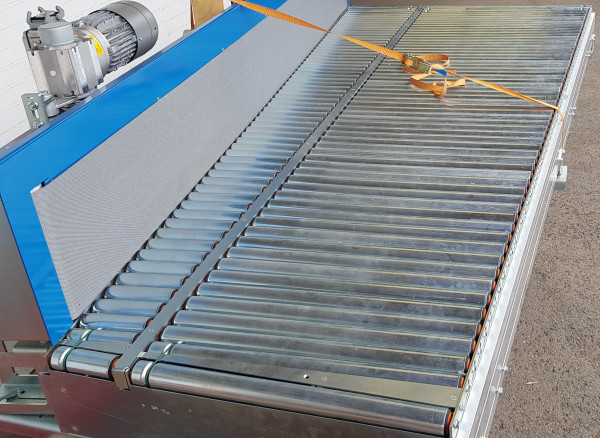

Transnorm right flush roller conveyor 3470-1830-1450

RA1855

Make: Transnorm

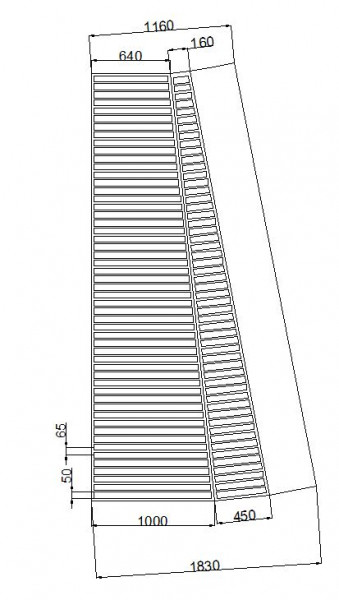

Basic dimensions: conical structure, 3470x1160-1830 mm
Length: 3470 mm
Nominal/external width (NB): 1160-1830 mm
Roll length  (RB): 160-450 mm & 640-1000 mm
Frame height: 290 mm
Currently set height: 640 mm
Height of side guide: 410 mm
Width (height) side belt 300 mm
Roller diameter: 50 mm
Roller pitch: 65 mm
Including 8 feet

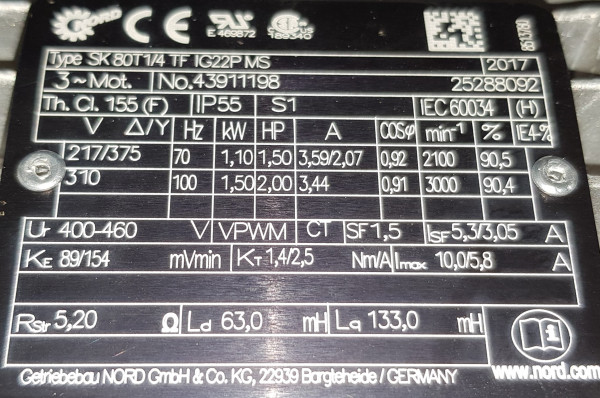

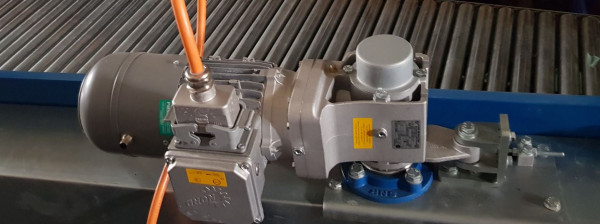

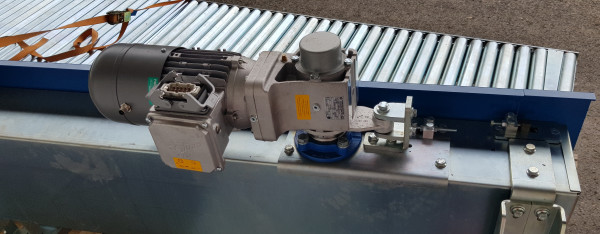

Motor MOVI-Mot 3x300-500V 1,5kW

Conveying speed:

Galvanized rollers: Ø = 50 mm
Gurtbreite in mm (GuB): 300
Optional erhältlich: Frequenzumrichter
Elektrische Daten: 70Hz, 217 / 375 V

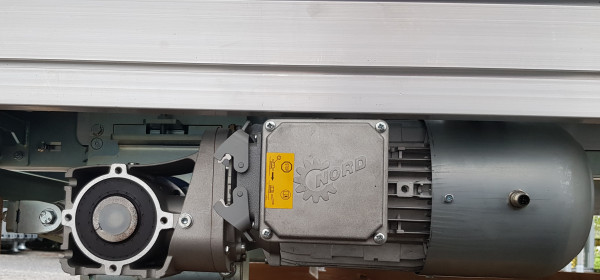

Antrieb: Nord-Drivesystem
Stützfüße: 8
Bauhöhe in mm (BH): 290
Förderlänge in mm (NL): 3470
Roll division in mm: 65
Height in mm: 640
scope of delivery: including supports and side guides, Kabel, ohne Frequenzumrichter
Roll width in mm: 160-450, 640-1000
condition: Ausstellungsstück
Gerüstbreite in mm (NB): 1160-1830
