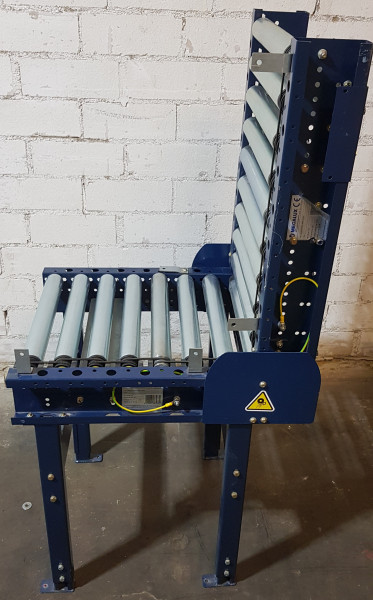

Mecalux roller conveyor roller conveyor with passage gate 24V 695+580-540-450

Preview: Mecalux roller conveyor roller conveyor with passage gate 24V 695+580-540-450

Mecalux roller conveyor roller conveyor with passage gate 24V 695+580-540-450

€1,865.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA1904

Mecalux roller conveyor roller conveyor with passage gate 24V 695+580-540-450 RA1904 Make:... more

Close menu

Product information "Mecalux roller conveyor roller conveyor with passage gate 24V 695+580-540-450"

Mecalux roller conveyor roller conveyor with passage gate 24V 695+580-540-450

RA1904

Make: Mecalux
Roller width (RB): 450 mm, Steel rolls
Nominal/outer width (NB): 540 mm
length: 695 mm + 580 mm passage
Rolls diameter: 50 mm
Roller distance 75 mm
Overall height frame: 130 mm
Height with support: 750 mm

2x ITOH-Deki 16936/010 24V Roller drive
Conveyor speed: freely adjustable with frequency converter between 0.543 and 0.95 m/s

Scope of delivery: with supports

Optionally available:
Side guide one and both sides

Prices net plus VAT. ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year:	2017
Electric data:	24V ITOH-Deki
condition:	very good (used)
Conveying length in mm:	695+580
Nominal / outside width in mm:	540
Roll width in mm:	450
Roll division in mm:	75
Driven:	YES
scope of delivery:	including supports
