Product information "Transnorm curved belt conveyor right 180°-1170-1000-IR1200"

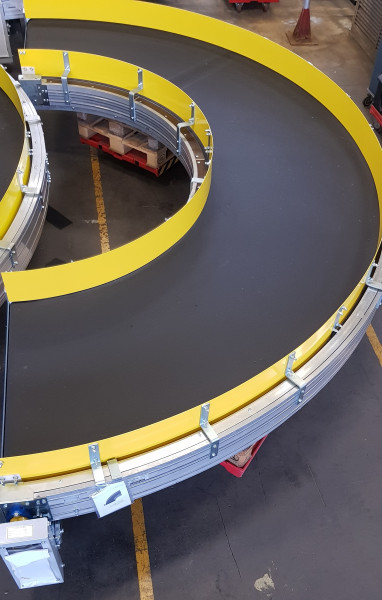

Transnorm belt curve conveyor right GKF 180°-1170-1000-IR1200

RA1964

Technical data:
Conveying length middle radius (NL): 5341 mm
Frame width (NB): 1170 mm
Frame width with Bearing cover: 1290 mm
Frame width with Bearing cover and gearbox: 1380 mm
belt width (GuB): 1000 mm
height (BH): 250 mm

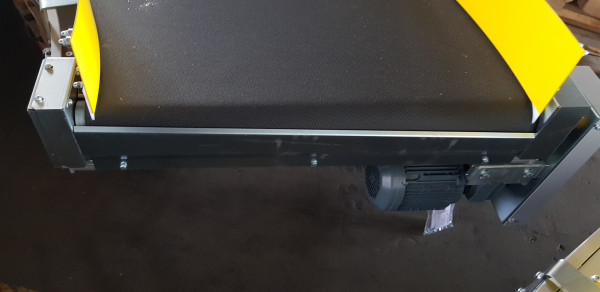

height motor below: 300 mm
height including motor (MH): 550 mm
Inner radius (IR): 1200 mm
Conveying angle: 180° degrees
middler conveying speed (v m/s): 1,4m/s

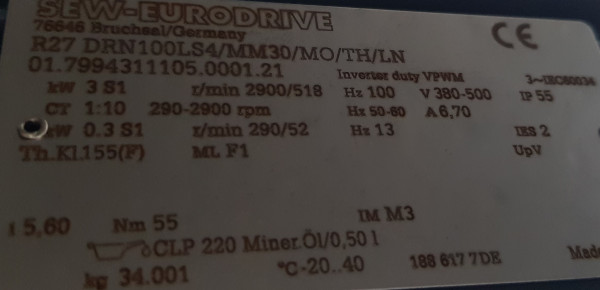

Drive: SEW motor motor with frequency converter
Electrical data: 50Hz V380-500, kW 3 / S1
Belt: KT 96 new
Year of construction: 2021
Height Sideguides: 194 mm

Optionally available:
Supports

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year:	2021
condition:	new
Nominal / inner radius in mm:	1200
Nominal / outside width in mm:	1127
Belt width in mm:	1000
angle:	180°
Driven:	YES
Running direction:	RIGHT
Engine type:	SEW Eurodrive
KW:	3,0/S1
Conveyor speed m / s:	freely adjustable
scope of delivery:	including side guides without supports, including Movimot frequency converter
