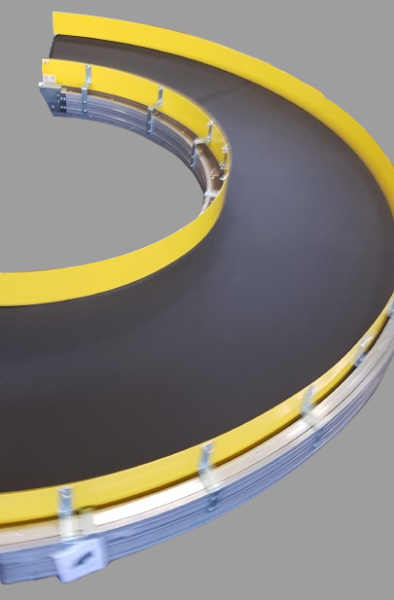

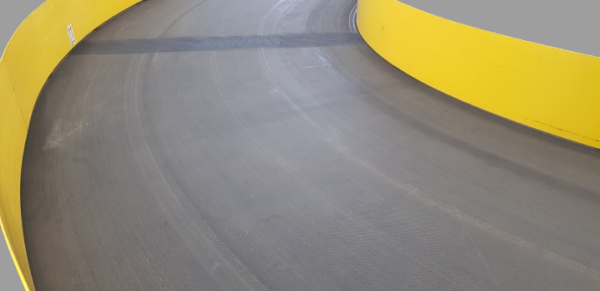

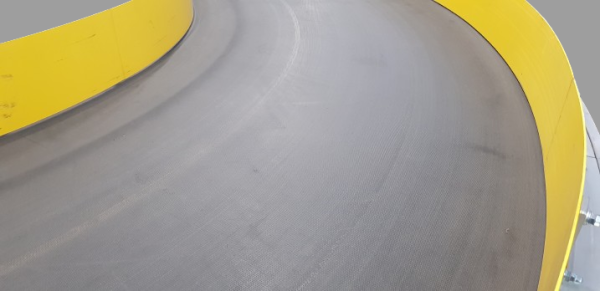

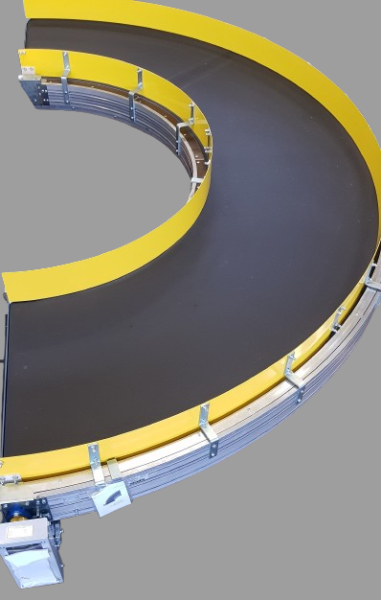

Transnorm curved belt conveyor right 180°-1270-1100-IR1200 -- NEW

€13,000.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm belt curve conveyor right GKF 180°-1270-1100-IR1200 -- NEW RA1946 Technical data:... more
Product information "Transnorm curved belt conveyor right 180°-1270-1100-IR1200 -- NEW"

Transnorm belt curve conveyor right GKF 180°-1270-1100-IR1200 -- NEW

RA1946

Technical data:
Conveying length middle radius (NL): 5498 mm
Frame width (NB): 1270 mm
Frame width with Bearing cover: 1390 mm
Frame width with Bearing cover and gearbox: 1480 mm
belt width (GuB): 1100 mm
height (BH): 250 mm
height motor below: 300 mm
height including motor (MH): 550 mm
Inner radius (IR): 1200 mm
Conveying angle: 180° degrees
middler conveying speed (v m/s): 1,4m/s

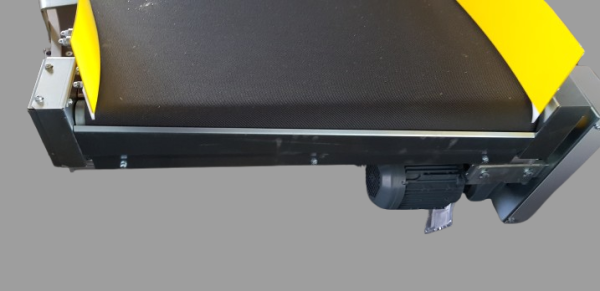

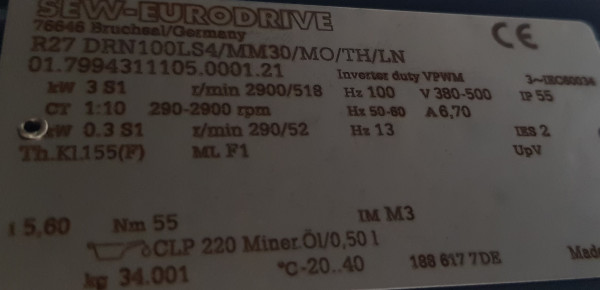

Drive: SEW motor motor with frequency converter
Electrical data: 50Hz V380-500, kW 3 / S1
Belt: KT 96 new
Year of construction: 2021
Height Sideguides: 194 mm

Optionally available:
Supports

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year: 2021
condition: new
Nominal / inner radius in mm: 1200
Nominal / outside width in mm: 1270
Belt width in mm: 1100
angle: 180°
Driven: YES
Running direction: RIGHT
Engine type: SEW Eurodrive
KW: 3,0/S1
Conveyor speed m / s: freely adjustable
scope of delivery: including side guides without supports, including Movimot frequency converter
