Lippert belt conveyor belt conveyor GF 7410-750-600

Preview: Lippert belt conveyor belt conveyor GF 7410-750-600

Lippert belt conveyor belt conveyor GF 7410-750-600

€3,650.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2502

Lippert belt conveyor GF 7410-750-600 RA2502 Technical data: Conveying length (NL): 7410... more

Close menu

Product information "Lippert belt conveyor belt conveyor GF 7410-750-600"

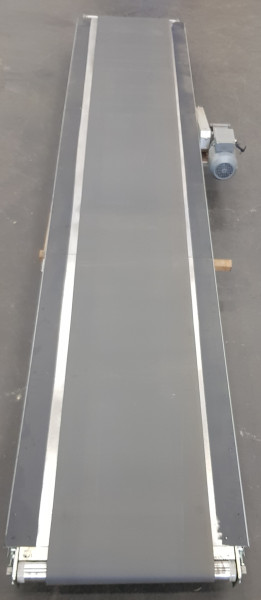

Lippert belt conveyor GF 7410-750-600

RA2502

Technical data:

Conveying length (NL): 7410 mm
Framework width (NB): 750 mm
belt width (GuB): 600 mm
height (BH): 105 mm
support feet: optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter

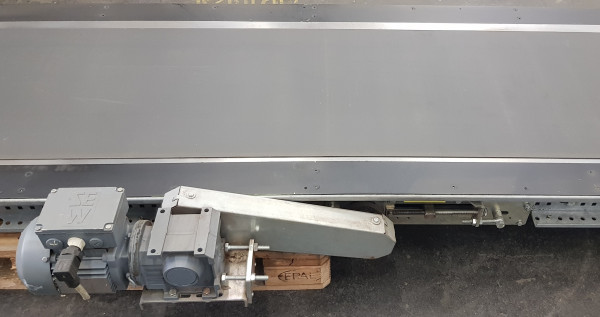

Drive: SEW gear motor
Electrical data: 50Hz V380-500, kW 0.15 / 0.75 / S1
Deflection roller (UR): Ø = 64 mm
Drive drum (AT): Ø = 81 mm
Belt: Type SNB-8E
Year of construction: 2001

Optionally available:
Supports
Side guides

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year:	2005
condition:	good (used)
Conveying length in mm:	7410
Nominal / outside width in mm:	750
Belt width in mm:	600
Driven:	YES
Engine type:	SEW Eurodrive Zentralantrieb mit Spannstation
KW:	0,75/S1
Ampere:	1,90
Conveyor speed m / s:	freely adjustable
scope of delivery:	without supports and side guides
