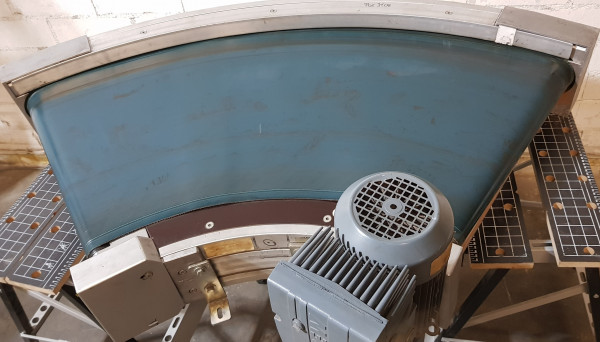

Transnorm belt curve conveyor right GKF70°-730-550 IR600

€2,650.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm belt curve conveyor left GKF 70°-730-600 IR600 RA1936 The Transnorm belt curve... more
Product information "Transnorm belt curve conveyor right GKF70°-730-550 IR600"

Transnorm belt curve conveyor left GKF 70°-730-600 IR600


The Transnorm belt curve is  fully functional. It has a gear motor of the brand SEW. Supports and are not included in the scope of delivery. They are optionally available on request.

Belt curves are often used in intralogistics for the internal transport of unit loads and are indispensable in modern distribution centers.
Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the highest possible running smoothness.


Technical data:
Frame width (NB): 730 mm
belt width (GuB): 550 mm
height (BH): 210 mm
Inner radius (IR): 600 mm
Conveying angle: 70° degrees
support feet: optionally available
Conveying speed (v m/s): freely adjustable with frequency converter between 0,032 and 1,17m/s,

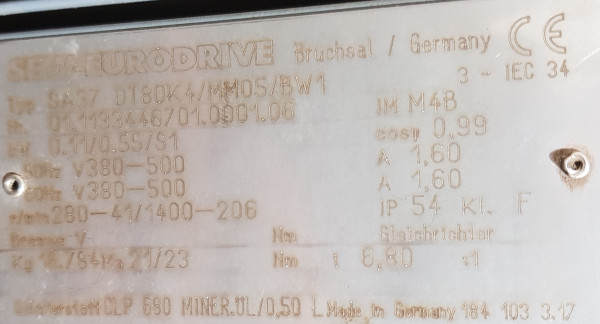

Drive: SEW gear motor
Electrical data: 50Hz V380-500, kW 0,55 / S1
Year of construction: 2000

Scope of delivery: without supports

Optionally available:
Side guide one- and both sideds

Prices net plus VAT. ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg



Construction year: 2000
condition: good (used)
Nominal / inner radius in mm: 600
Nominal / outside width in mm: 730
Belt width in mm: 550
angle: 70°
Driven: YES
Running direction: RIGHT
Engine type: SEW Eurodrive
KW: 0,55/S1
Conveyor speed m / s: 0,032-1,17
scope of delivery: inklusive Frequenzumrichter, without supports and side guides
