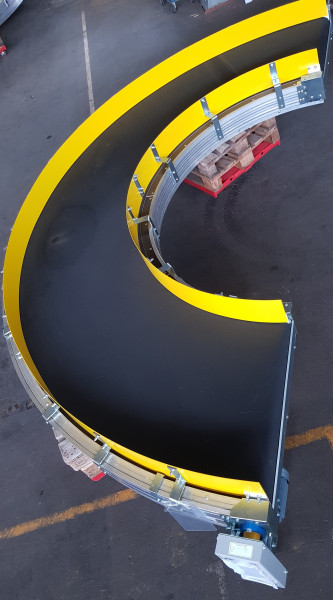

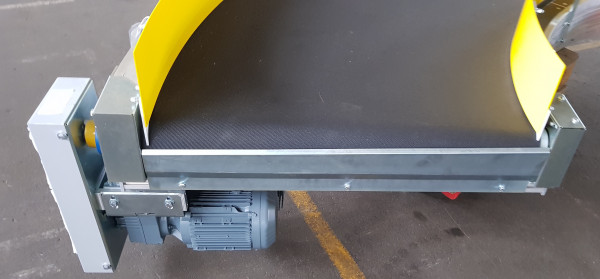

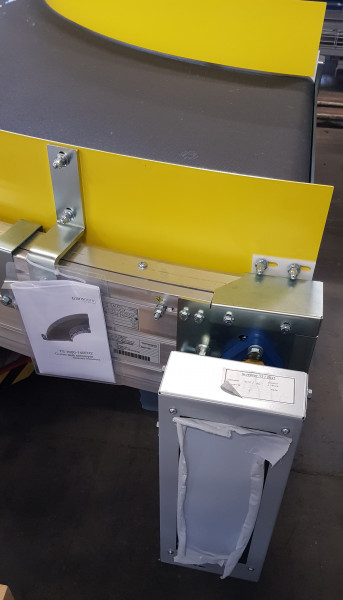

Transnorm curved belt conveyor left 180°-1270-1100-IR1200 -- NEW
Prices plus VAT plus shipping costs
Delivery time approx. 5-10 days.
Pick up by arrangement.
- Order number: RA1945
Transnorm belt curve conveyor left GKF 180°-1270-1100-IR1200 -- NEW
RA1945
Technical data:
Conveying length middle radius (NL): 5498 mm
Frame width (NB): 1270 mm
Frame width with Bearing cover: 1390 mm
Frame width with Bearing cover and gearbox: 1480 mm
belt width (GuB): 1100 mm
height (BH): 250 mm
height motor below: 300 mm
height including motor (MH): 550 mm
Inner radius (IR): 1200 mm
Conveying angle: 180° degrees
middler conveying speed (v m/s): 1,4m/s

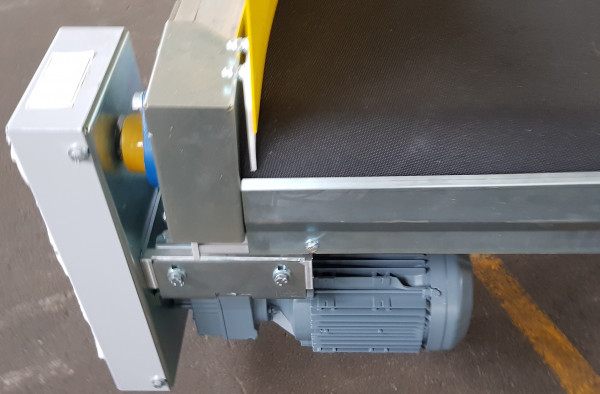

Drive: SEW motor motor with frequency converter
Electrical data: 50Hz V380-500, kW 3 / S1
Belt: KT 96 new
Year of construction: 2021
Height Sideguides: 194 mm
Optionally available:
Supports
Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
Construction year: | 2021 |
condition: | new |
Nominal / inner radius in mm: | 1200 |
Nominal / outside width in mm: | 1270 |
Belt width in mm: | 1100 |
angle: | 180° |
Driven: | YES |
Running direction: | LINKS |
Engine type: | SEW Eurodrive |
KW: | 3,0/S1 |
Conveyor speed m / s: | freely adjustable |
scope of delivery: | including side guides without supports, including Movimot frequency converter |
