Lippert Rising falling Incline belt conveyor GF 7000-900-800

€3,191.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Lippert Rising falling Incline belt conveyor GF 7000-900-800 RA2055 Technical data: Conveyor... more
Product information "Lippert Rising falling Incline belt conveyor GF 7000-900-800"

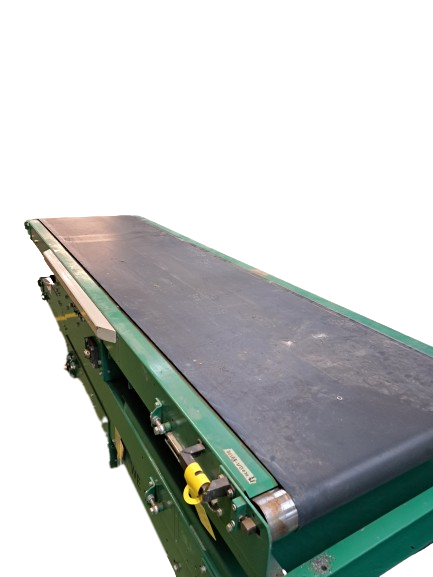

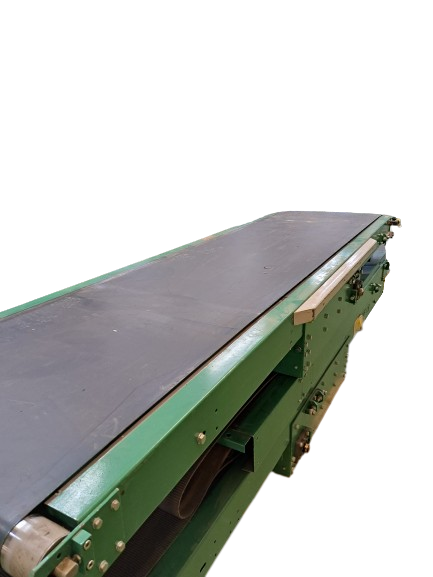

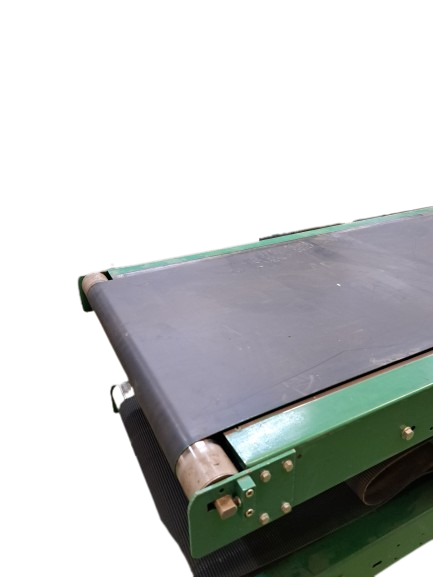

Lippert Rising falling Incline belt conveyor GF 7000-900-800

RA2055

Technical data:

Conveyor length (NL): 7000 mm (4960 mm + 700 mm + 1340 mm)
frame width (NB): 900 mm
belt width (GuB): 800 mm
Overall height (BH): 120 mm, 430 mm with motor
Angle: about 15° ( 2 x 7,5° )
Supporting feet: optionally available
Conveying speed (v m/s): Contact us and we will try to meet your preferred conveying speed.
Drive: SEW gear motor
Electrical data: 50Hz V380-500, kW 0,75 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

condition: good (used)
Conveying length in mm: 7000
Nominal / outside width in mm: 900
Belt width in mm: 800
Driven: YES
Engine type: SEW Eurodrive Zentralantrieb mit Spannstation
KW: 0,75/S1
Conveyor speed m / s: bitte Kontaktieren
scope of delivery: without supports and side guides
Zusatzinformationen

For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.

We look forward to hearing from you.

With kind regards

Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
