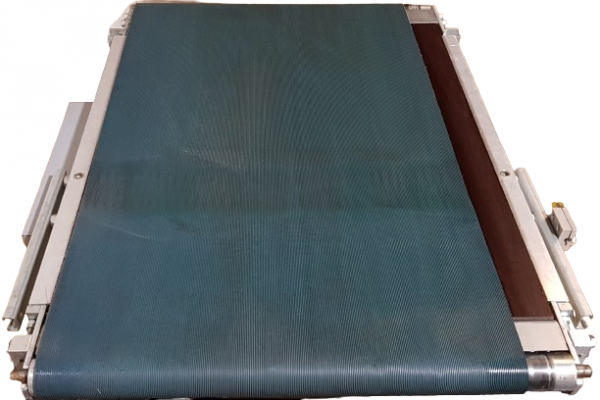

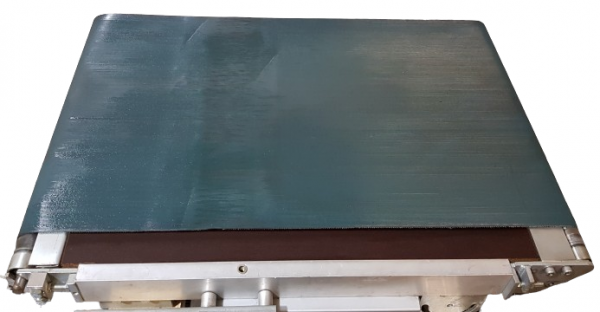

Transnorm Belt conveyor belt conveyor belt 800-600-500 optionally extendable

Transnorm belt conveyor 800-600-500

RA2041

The Transnorm belt conveyor is from 1999 and in a good (used) condition. It is perfect as a feeder belt and has a Van der Graaf brand motor. Supports are not included in the delivery. These are available as an option.

Technical data:

Manufacturer: Transnorm
Type: TS 1100 belt conveyor
Year of manufacture: 1999
Condition: good (used)
Motor: fully functional
conveying length (FL): 800 mm
nominal/outer width (NB): 600 mm
belt width (GB): 500 mm
overall height (BH): 85 mm
motor height (MH): 545 mm
Motor type: SEW motor
Motor power: kW 0.55 230/400 V 50Hz
Conveying speed: 1,02 m/s
Weight: 60 kg
Scope of delivery: without supports (if required, please ask)
Optional:
Supports
Sideguides
Frequency converter
We can also extend the conveyor to your needed dimension

Price plus VAT ex central warehouse Dr. Sonntag GmbH & Co. KG 97076 Würzburg
