Lippert belt conveyor belt conveyor GF 22800-650-500

Lippert belt conveyor GF 22800-610-450

RA1485

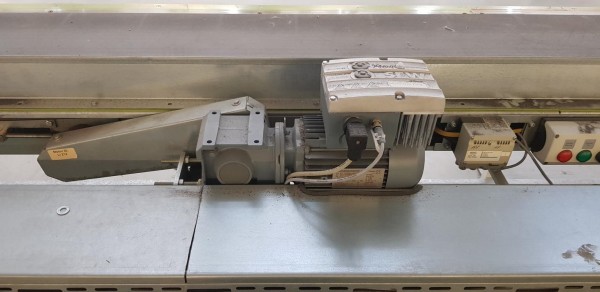

The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW motor with MOVIMOT frequency inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request.

The pictures of the conveyor system shown here were taken in a logistics center while still installed.

Technical data:

Conveying length (NL): 22.800 mm
Framework width (NB): 610 mm
belt width (GuB): 450 mm
height (BH): 105 mm
support feet: optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter

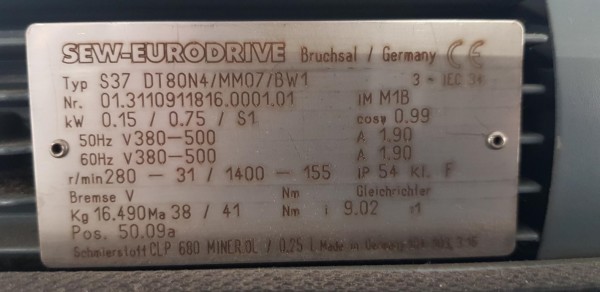

Drive: SEW gear motor S37 DT80N4/MM07/BW1
Electrical data: 50Hz V380-500, kW 0.15 / 0.75 / S1
Deflection roller (UR): Ø = 64 mm
Drive drum (AT): Ø = 131 mm
Belt: Type ENB-8EL
Year of construction: 2001

Optionally available:
Supports
Side guide one and both sides

Prices net ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
