Kannegiesser belt conveyor belt conveyor with DUO-Pusher GF 2500-680-600

Kannegiesser belt conveyor belt conveyor with DUO-Pusher GF 2500-680-600

RA1309

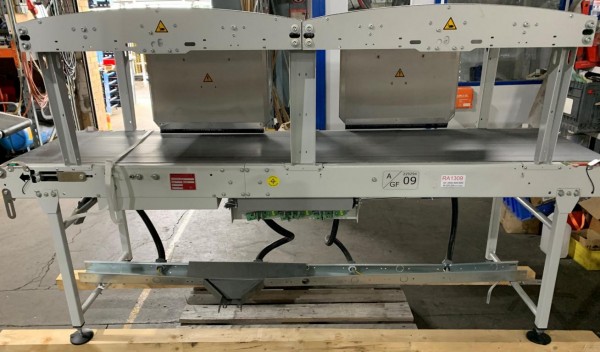

The Kennegisser belt conveyor is from 2015 and in good (used) condition. In addition, it is 2500 mm longer and equipped with a DUO pusher (sorting pusher). The pusher is used to sort laundry items according to selected criteria. The folded laundry item is pushed by a pusher plate onto a following conveyor or a roller conveyor. 2 support feet are included in delivery.

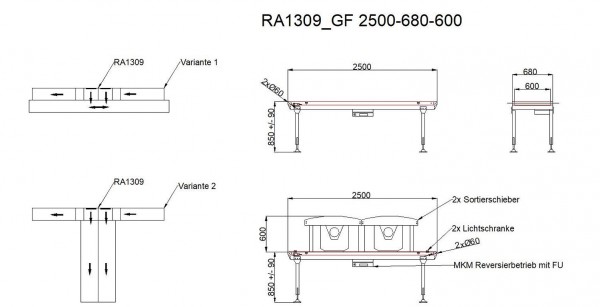

Technical data:

Conveying length (NL): 2500 mm
Framework width (NB): approx. 680 mm
belt width (GuB): 600 mm
Height / Belt run (BH): 850 mm +/- 90 mm
Number of support feet: 2 pieces
Conveying speed (v m/s): 0.1 - 1.1 m/s, reversing operation with FU
Drive: Normal Motor
Electrical data: 400 V / 50 Hz
Deflection drum (UT): Ø = 60 mm
belt return roller: Ø = 50 mm
Belt: 2-layer PVC belt, black, smooth

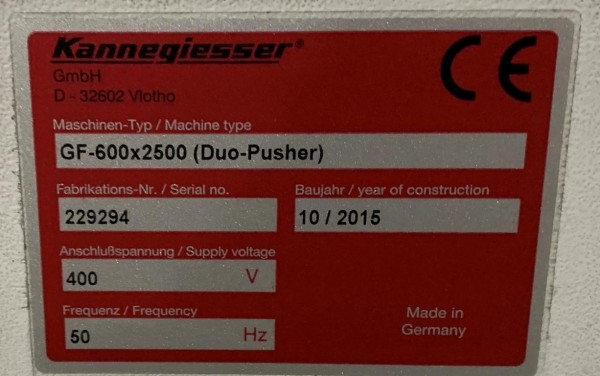

Year of construction: 10/2015

Special feature / accessories:
1x MKM TYPE-1 681.015/4 with FU
2x sorting slides (DUO Pusher)
2x light barrier
1x deflection drum cover

All prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
