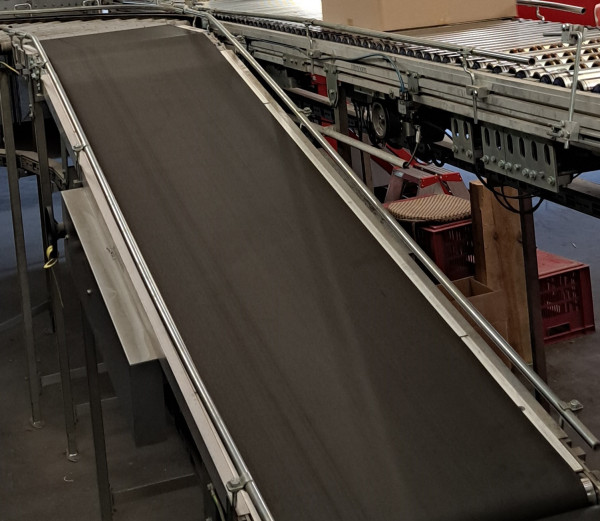

Transnorm Rising falling Incline belt conveyor with arch GF 580+1990-600-500

Preview: Transnorm Rising falling Incline belt conveyor with arch GF 580+1990-600-500

Transnorm Rising falling Incline belt conveyor with arch GF 580+1990-600-500

€2,527.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2430

Transnorm Rising falling Incline belt conveyor with arch GF 580+1990-600-500 RA2430... more

Close menu

Product information "Transnorm Rising falling Incline belt conveyor with arch GF 580+1990-600-500"

Transnorm Rising falling Incline belt conveyor with arch GF 580+1990-600-500

RA2430

Technical data:

Conveyor length (NL): 2570 mm ( 580 mm arch + 1990 mm riser segment )
frame width (NB): 600 mm, 750 mm with motor
belt width (GuB): 500 mm
Overall height (BH): 80 mm, 360 mm with motor
Angle: freely adjustable between 0 and 15°
Supporting feet: optionally available
Conveying speed (v m/s): 1.6 m/s
Drive: SEW gear motor
Electrical data: 50Hz V380-500, kW 0,55 S1
Drive drum: Ø = 100 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
leading belt with overdrive
Frequency converter for stepless speed change
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

condition:	good (used)
Conveying length in mm:	2570 (580+1990)
Nominal / outside width in mm:	600
Belt width in mm:	500
Driven:	YES
Engine type:	SEW Eurodrive Zentralantrieb mit Spannstation
KW:	0,55/S1
Conveyor speed m / s:	1,6
scope of delivery:	Ohne Vorlaufband, without supports and side guides

Zusatzinformationen

For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.

We look forward to hearing from you.

With kind regards

Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
