Transnorm TS 2800 sorter switch 1980-1250-1150

Transnorm sorter switch 1980-1250-1150 RA1999 Make: Transnorm Roll width (RB): 1150 mm... more
Product information "Transnorm TS 2800 sorter switch 1980-1250-1150"

Transnorm sorter switch 1980-1250-1150

RA1999

Make: Transnorm
Roll width (RB): 1150 mm
Nominal/outer width (NB): 1250 mm
Length: 1980 mm
Diameter rollers: 50 mm
distance between rollers: 76 mm
Roller conveyor motor: 2x SEW drive motor

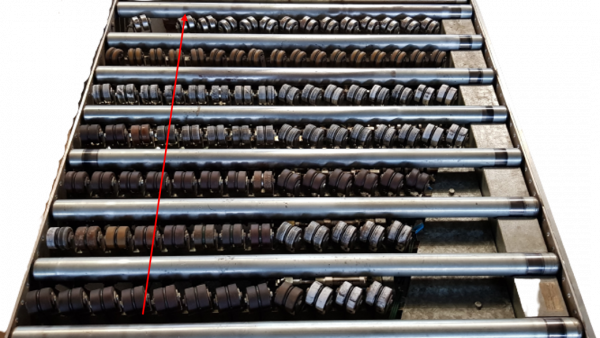

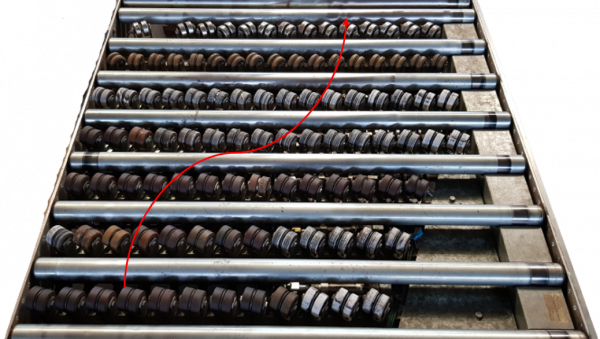

Angle of the rollers is adjusted pneumatically (see pictures)
conveying speed: approx.1,73m/s
maximum recommended box/package width: 400 mm
Theoretical sorting speed at 600 mm crate length: ca. 4250/h


Included:
Side guide included on one side
Control valve

Optionally available:
Supports
Side guides on both sides
Conversion to box width up to 500 mm
Barcode scanner
Control system (stand-alone unit)
System optimization (e.g. replace valves, dual solenoid valve, forward conveyors, frequency converter) for higher flow rate 6000++ and more

Translated with www.DeepL.com/Translator (free version)
