Transnorm belt conveyor belt conveyor GF 3500-700-600

Preview: Transnorm belt conveyor belt conveyor GF 3500-700-600

Transnorm belt conveyor belt conveyor GF 3500-700-600

€1,694.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2200

Transnorm conveyor belt GF 3500-700-600 RA2200 Technical data: Conveyor length (NL): 3500 mm... more

Close menu

Product information "Transnorm belt conveyor belt conveyor GF 3500-700-600"

Transnorm conveyor belt GF 3500-700-600

RA2200

Technical data:

Conveyor length (NL): 3500 mm
frame width (NB): 700 mm, 800 mm with motor
belt width (GuB): 600 mm
Overall height (BH): 80 mm, 430 mm with motor
Supporting feet: optionally available
Conveying speed (v m/s): 0,58

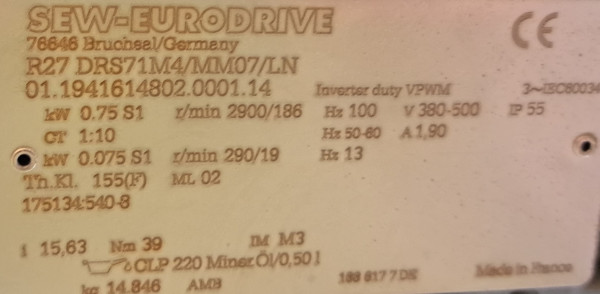

Drive: SEW gear motor, R27 DRS71M4BE1/MM07/LN
Electrical data: 50Hz V380-500, kW 0,75 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

Construction year:	2014
condition:	good (used)
Conveying length in mm:	3500
Nominal / outside width in mm:	700
Belt width in mm:	600
Driven:	YES
Engine type:	SEW Eurodrive Zentralantrieb mit Spannstation
KW:	0,75/S1
Conveyor speed m / s:	0,58
scope of delivery:	without supports and side guides

Zusatzinformationen

For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.

We look forward to hearing from you.

With kind regards

Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
