Transnorm roller conveyor ejector conveyor cross roller 3715-1050-1030

Preview: Transnorm roller conveyor ejector conveyor cross roller 3715-1050-1030

Transnorm roller conveyor ejector conveyor cross roller 3715-1050-1030

€4,419.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA1854

Transnorm roller conveyor ejector GF 4510-1120-1000 RA1854 Make: Transnorm Roller width... more

Close menu

Product information "Transnorm roller conveyor ejector conveyor cross roller 3715-1050-1030"

Transnorm roller conveyor ejector GF 4510-1120-1000

RA1854

Make: Transnorm
Roller width (RB): 1030 mm, Steel rolls
Nominal/outer width (NB): 1050 mm
Rolls diameter: 50 mm
length: 3715mm
Overall height frame: 250
ejector angle: 30° in both sides
7 rows ejector individually controllable

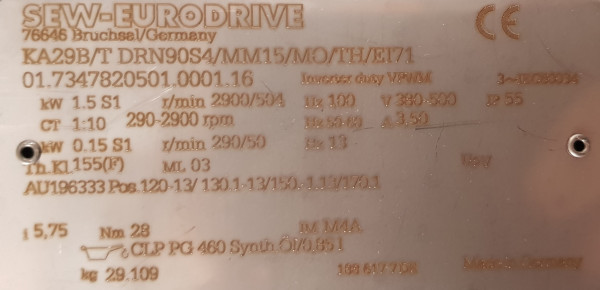

Motor MOVI-Mot 300-500V 1,75kW
Conveyor speed: freely adjustable with frequency converter

Scope of delivery: with supports (please enquire if required)

Prices net plus VAT. ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year:	2016
Roll division in mm:	65
scope of delivery:	including supports and side guides
angle:	30°
KW:	1,5/S1
Electric data:	380-500
Conveying length in mm (NL):	3715
Frame width in mm (NB):	1050
Bauhöhe in mm (BH):	250
