Lippert inclined diverter Inclined inlet saw feed 45°

Preview: Lippert inclined diverter Inclined inlet saw feed 45°

Lippert inclined diverter Inclined inlet saw feed 45°

€1,100.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA1821

Lippert inclined diverter Inclined inlet saw feed 45° RA1821 Year of manufacture: 2012 Feed... more

Close menu

Product information "Lippert inclined diverter Inclined inlet saw feed 45°"

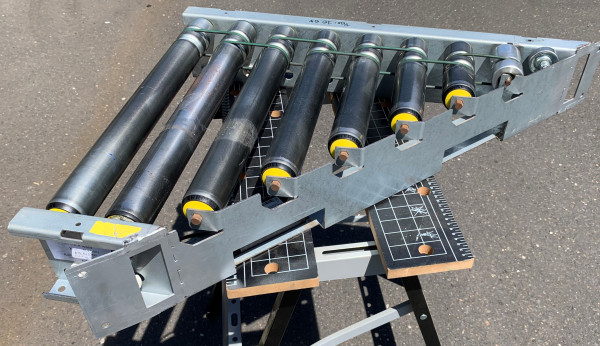

Lippert inclined diverter Inclined inlet saw feed 45°

RA1821
Year of manufacture: 2012

Feed angle: 45° (gusset)
Nominal/outer width (NB): 570 mm
Usable width (NUB): 500 mm
Conveyor speed: adjustable
Roller diameter: 50 mm Interroll, hexagon incl. compression spring

Drive: 1x Drivecontrol 20 with 24V

Material: galvanised steel

Centre distance: 75 mm

Overall height: 130 mm

Transport dimensions:
L x W x H = 705 x 570 x 130 mm

condition:	good (used)
Construction year:	2012
angle:	45°
nominal voltage:	24V
Conveying length in mm:	705
Nominal / outside width in mm:	570
Roll width in mm:	50
Roll division in mm:	75
Driven:	YES
Engine type:	Trommelmotor
KW:	-
Ampere:	-
Conveyor speed m / s:	freely adjustable
scope of delivery:	without supports and side guides
