Kannegiesser belt conveyor belt conveyor belt GF 1000-680-600

€2,059.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

  • RA1303
  • 229.289
Kannegiesser belt conveyor Belt conveyor GF 1000-680-600 RA1303   The Kannegiesser... more
Product information "Kannegiesser belt conveyor belt conveyor belt GF 1000-680-600"

Kannegiesser belt conveyor Belt conveyor GF 1000-680-600

RA1303

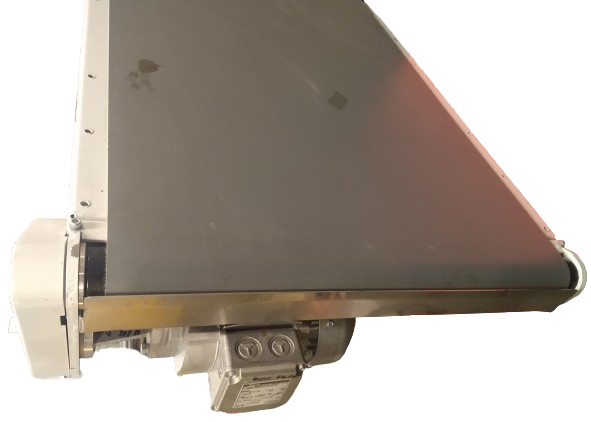

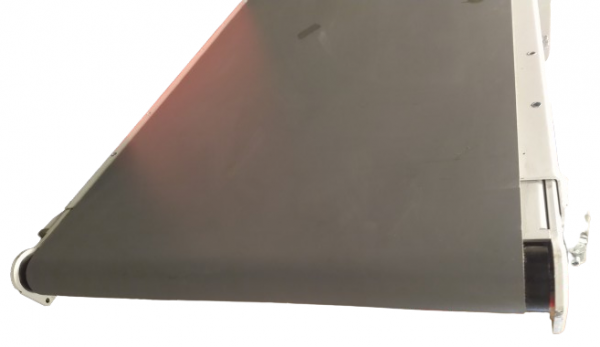

The Kannegiesser conveyor belt is from the year 2015 and is in good (used) condition. The belt conveyor has a 400V motor MKM TYPE-1 681.015 with frequency converter to regulate the conveying speed. The shown supports are included in the delivery.



Technical data:

conveying length (NL): 1000 mm
Framework width (NB): approx. 680 mm
belt width (GuB): 600 mm
Height / Belt run (BH): 630 mm +/- 90 mm
Number of support feet: 2 pieces
Conveying speed (v m/s): adjustable up and down with frequency converter
Drive: Normal Motor
Electrical data: 400 V / 50 Hz
Deflection drum (UT): Ø = 60 mm
Belt: 2-layer PVC belt, black, smooth
Year of construction: 10/2015

Special features / accessories:
1x MKM TYPE-1 681.015/4 with FU
2x light barrier
2x deflection drum cover



All prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg





Construction year: 2015
condition: good (used)
Conveying length in mm: 1000
Nominal / outside width in mm: 680
Belt width in mm: 600
Driven: YES
Engine type: MKM Typ-1 681.015/4 mit FU
Conveyor speed m / s: freely adjustable
scope of delivery: including supports
