Motion06 angled-belt conveyor 30° 1615-1150-1050

Preview: Motion06 angled-belt conveyor 30° 1615-1150-1050

Motion06 angled-belt conveyor 30° 1615-1150-1050

€3,000.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA1337

Motion06 angled-belt conveyor 30° 1615-1150-1050 RA1337 Exhibit Make: Motion06 Year of... more

Close menu

Product information "Motion06 angled-belt conveyor 30° 1615-1150-1050"

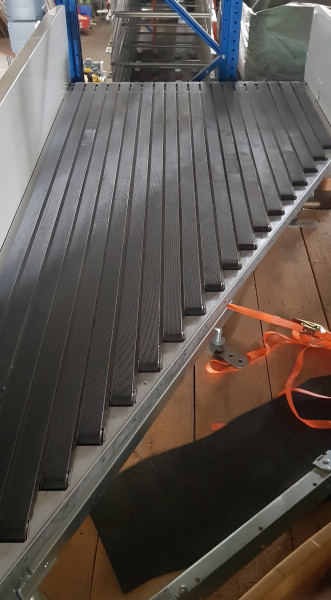

Motion06 angled-belt conveyor 30° 1615-1150-1050
RA1337
Exhibit
Make: Motion06
Year of manufacture: 2017
Inlet angle: 30
Length: 1830 mm angle inlet and 700 mm full width, total length 2530 mm
Belt width (RB): 1050 mm ( 20x 40 mm )
Frame height: 150 mm
Nominal/external width (NB): 1150 mm
Adjusted height: 560 mm
Conveying speed:

V230/400
kW 0,75

Overall height side wall: 300 mm
Scope of delivery: with motor, supports and side guides (if required, please ask)

Construction year:	2017
scope of delivery:	including supports and side guides
angle:	30°
KW:	0,75/S1
Electric data:	220-240, 380-400
condition:	Ausstellungsstück
Antrieb:	SEW Getriebemotor
Optional erhältlich:	Frequenzumrichter
Conveying length in mm (NL):	1615
Frame width in mm (NB):	1150
Belt width in mm (GuB):	1050
Bauhöhe in mm (BH):	150
