This product is currently not available.

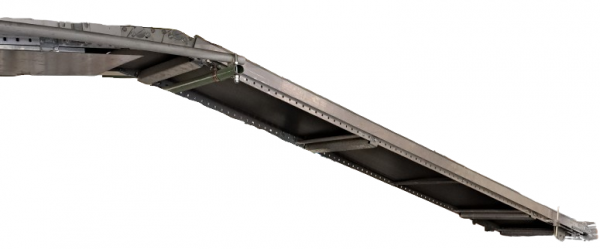

Transnorm Rising falling Incline belt conveyor GF 15000+3200-600-500

€4,728.00 *

Prices plus VAT plus shipping costs

Delivery time 5-10 Days Workdays

Transnorm Rising falling Incline belt conveyor GF 15000+3200-600-500 RA2240 Technical data:... more
Product information "Transnorm Rising falling Incline belt conveyor GF 15000+3200-600-500"

Transnorm Rising falling Incline belt conveyor GF 15000+3200-600-500

RA2240

Technical data:

Conveyor length (NL): 18200 mm ( 15000 mm + 3200 mm )
frame width (NB): 600 mm, 700 mm with motor
belt width (GuB): 500 mm
Overall height (BH): 80 mm, 430 mm with motor
Angle: freely adjustable between 0 and 15°
Supporting feet: optionally available
Conveying speed (v m/s): Contact us and we will try to meet your preferred conveying speed.
Drive: SEW gear motor, R40 DT80N4
Electrical data: 50Hz V380-500, kW 0,75 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

Construction year: 1998
condition: good (used)
Conveying length in mm: 18200 ( 15000 + 3200 )
Nominal / outside width in mm: 600
Belt width in mm: 500
Driven: YES
Engine type: SEW Eurodrive Zentralantrieb mit Spannstation
KW: 0,75/S1
Conveyor speed m / s: bitte Kontaktieren
scope of delivery: without supports and side guides
