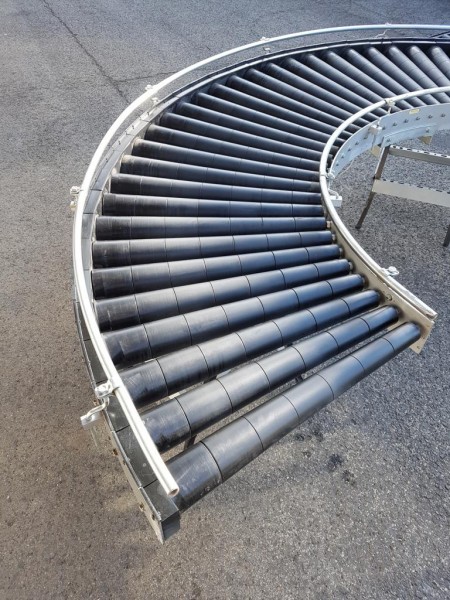

Transnorm curved roller conveyor 180°-900-800 IR800

Preview: Transnorm curved roller conveyor 180°-900-800 IR800

Transnorm curved roller conveyor 180°-900-800 IR800

€3,151.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2233

Transnorm curved roller conveyor 180°-900-800 IR800 RA2233 Technical data:... more

Close menu

Product information "Transnorm curved roller conveyor 180°-900-800 IR800"

Transnorm curved roller conveyor 180°-900-800 IR800

RA2233

Technical data:

Manufacturer: Transnorm
Type: TS 2712 curved 180°
Built: 2001
Condition: good (used)
Engine: fully functional
Angle: 180°
Inner radius RN: 800 mm (nominal radius)
Outer width: 900 mm
Clamping length: 800 mm
Engine Type: SEW Gear Motor, R17DT71D4/TH
Engine Power: V 380-500, kW 0.37
Drive: chain drive
Conveyor speed: contact us
Weight: 260 kg
Scope of delivery: without supports

Optionally available:
Supports
Lateral guide on one and both sides
Frequency inverter for stepless speed change
Length adjustment (longer/shorter)
Other roller conveyors/roller curves with chain transmission

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Drive type:	Chain overdrive
Construction year:	2001
condition:	good (used)
Nominal / inner radius in mm:	800
Nominal / outside width in mm:	900
Roll width in mm:	800
angle:	180°
Driven:	YES
scope of delivery:	without supports and side guides

Zusatzinformationen

For individual, expert advice, simply get in touch with us.
Simply contact us by phone or email.
We will be happy to help you plan and implement your projects.

We look forward to hearing from you.

With kind regards

Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
