Preview: Transnorm conveyor belt GF 2600-600-500

Transnorm conveyor belt GF 2600-600-500

€2,083.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2237

Transnorm conveyor belt GF 2600-600-500 RA2237 Technical data: Conveyor length (NL): 2600 mm... more

Close menu

Product information "Transnorm conveyor belt GF 2600-600-500"

Transnorm conveyor belt GF 2600-600-500

RA2237

Technical data:

Conveyor length (NL): 2600 mm
Frame width (NB): 600 mm, 700 mm with motor
Belt width (GuB): 500 mm
Overall height (BH): 80 mm, 430 mm with motor
Support feet: optionally available
Conveyor speed (v m/s): please contact us

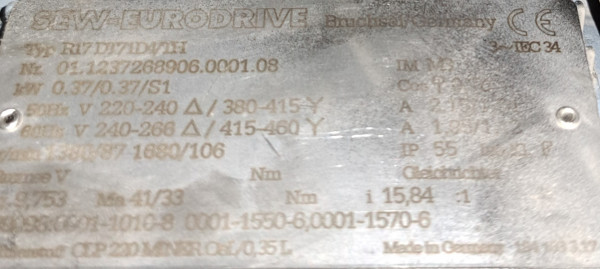

Drive: SEW geared motor, R17 DT71D4/TH
Electrical data: 50Hz V380-500, kW 0.37 S1
Drive pulley: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Lateral guide on one and both sides
Frequency inverter for stepless speed change
Adjustable length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

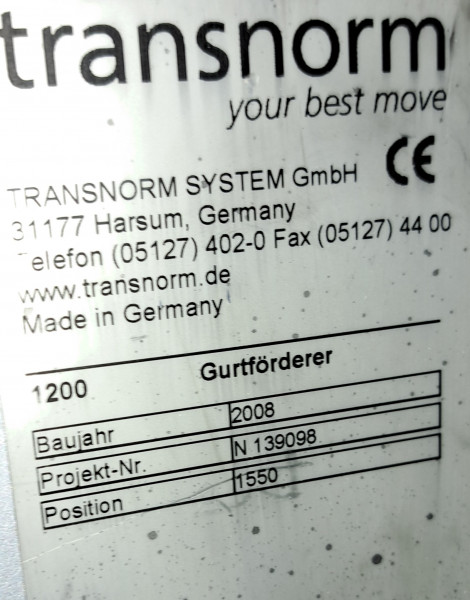

Construction year:	2008
condition:	good (used)
Conveying length in mm:	2600
Nominal / outside width in mm:	600
Belt width in mm:	500
Driven:	YES
Engine type:	SEW Eurodrive Zentralantrieb mit Spannstation
KW:	0,37/S1
Conveyor speed m / s:	bitte Kontaktieren
scope of delivery:	without supports and side guides

Zusatzinformationen

For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.

We look forward to hearing from you.

With kind regards

Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
