Transnorm belt curve conveyor left GKF 45°-1370-1200 IR1100

€4,250.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm belt curve conveyor left GKF 45°-1370-1200 IR1100 RA1937 The Transnorm belt curve... more
Product information "Transnorm belt curve conveyor left GKF 45°-1370-1200 IR1100"

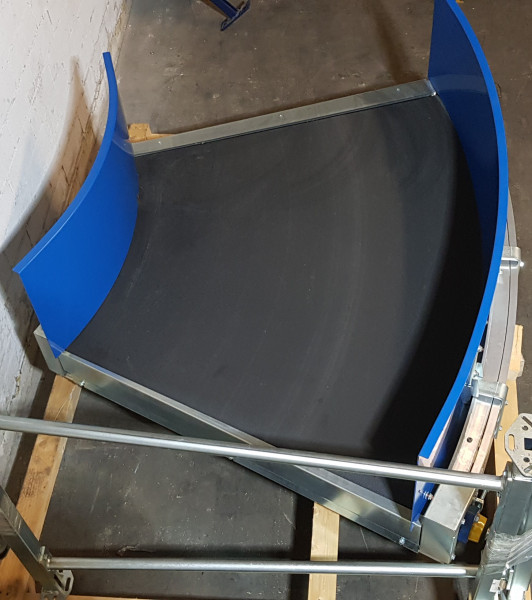

Transnorm belt curve conveyor left GKF 45°-1370-1200 IR1100

RA1937

The Transnorm belt curve is  fully functional. It has a gear motor of the brand SEW. Supports and are not included in the scope of delivery. They are optionally available on request.

Belt curves are often used in intralogistics for the internal transport of unit loads and are indispensable in modern distribution centers.
Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the highest possible running smoothness.



Technical data:
Frame width (NB): 1370 mm
belt width (GuB): 1200 mm
height (BH): 260 mm
Inner radius (IR): 1100 mm
Conveying angle: 45° degrees
support feet: optionally available
Conveying speed (v m/s): freely adjustable with frequency converter between 0,032 and 1,17m/s,
Drive: SEW gear motor
Electrical data: 50Hz V380-500, kW 0,75 / S1
Year of construction: 2018

Scope of delivery: with supports and sideguide

Prices net plus VAT. ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg





Construction year: 2018
condition: Ausstellungsstück
Nominal / inner radius in mm: 1100
Nominal / outside width in mm: 1370
Belt width in mm: 1200
angle: 45°
Driven: YES
Running direction: LINKS
Engine type: SEW Eurodrive
KW: 0,75/S1
Conveyor speed m / s: 0,032-1,17
scope of delivery: inklusive Frequenzumrichter, including supports and side guides
