Transnorm belt curve conveyor left GKF 180°-775-600 IR500

€3,940.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm belt curve conveyor left GKF 180°-775-600 IR500 RA2013 The Transnorm belt curve is... more
Product information "Transnorm belt curve conveyor left GKF 180°-775-600 IR500"

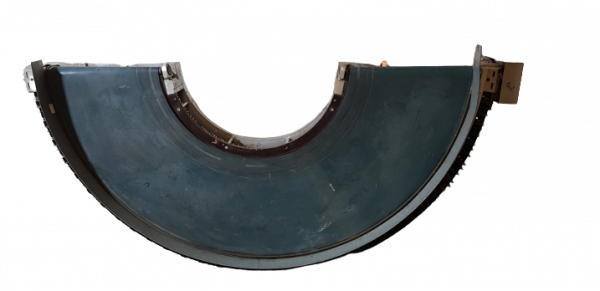

Transnorm belt curve conveyor left GKF 180°-775-600 IR500


The Transnorm belt curve is in good condition (used) and fully functional. It has a gear motor of the brand SEW. Supports and Side guides are not included in the scope of delivery. They are optionally available on request.

Belt curves are often used in intralogistics for the internal transport of unit loads and are indispensable in modern distribution centers.
Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the highest possible running smoothness.

Technical data:

Type designation: Belt curve conveyor TS 1600-105
Frame width (NB): 775 mm
belt width (GuB): 600 mm
height (BH): 210 mm
Inner radius (IR): 500 mm
Conveying angle: 180° degrees
support feet: optionally available
Conveying speed (v m/s): contact us
Drive: SEW gear motor SA37 DT80N4/MM07/BW1
Electrical data: 50Hz V380-500, kW 0.15 / 0.75 / S1
Belt: will be changed
Year of construction: 1999
Special feature / Accessories: Lateral guides included on both sides

Optionally available:


Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg



Construction year: 1999
condition: good (used)
Nominal / inner radius in mm: 600
Nominal / outside width in mm: 775
Belt width in mm: 600
angle: 180°
Driven: YES
Running direction: LINKS
Engine type: SEW Eurodrive
KW: 0,75/S1
Ampere: 1,90
Conveyor speed m / s: freely adjustable
scope of delivery: including side guides without supports
