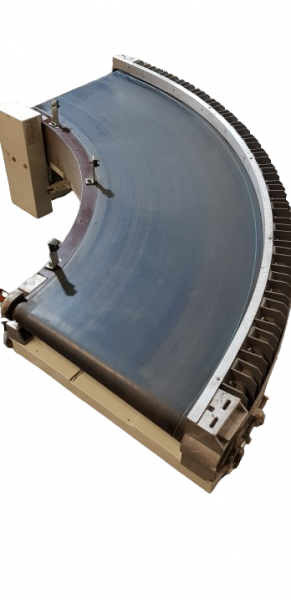

Transnorm belt curve conveyor left 90°-750-550-IR900
Belt curves are often used in intralogistics for the internal transport of unit loads and are indispensable in modern distribution centers.
Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the highest possible running smoothness.
Frame width (NB): 750 mm
belt width (GuB): 550 mm
height (BH): 210 mm
height including motor (MH): 480 mm
Inner radius (IR): 900 mm
Conveying angle: 90° degrees
Conveying speed (v m/s): contact us

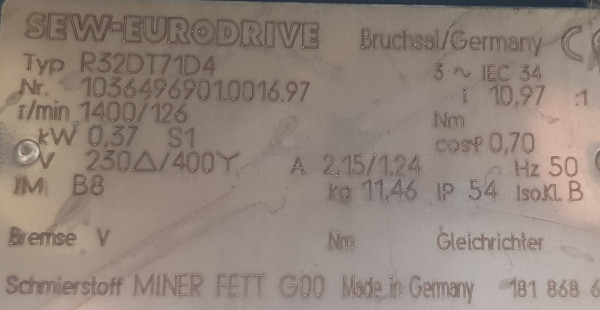

Drive: SEW gear motor
Electrical data: 50Hz V230/400, kW 0.55 / S1
Belt:KT58, will be changed

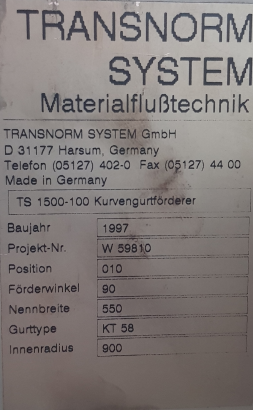

Year of construction: 1997
Side guide one and both sides
Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
|Nominal / inner radius in mm:||900|
|Nominal / outside width in mm:||750|
|Belt width in mm:||550|
|Engine type:||SEW Eurodrive|
|scope of delivery:||ohne Frequenzumrichter, without supports and side guides|
If you need other dimensions or individual, professional advice, please contact us.
Simply contact us by phone or mail or use our filters on our website: https://www.industriebedarf-sonntag.de/
We will be happy to help you with the planning and implementation of your projects.
We look forward to hearing from you.
With kind regards
Your team of Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
